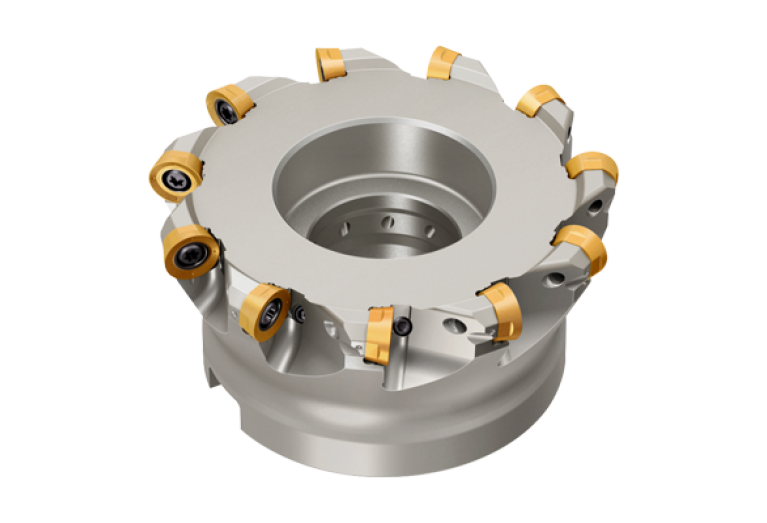

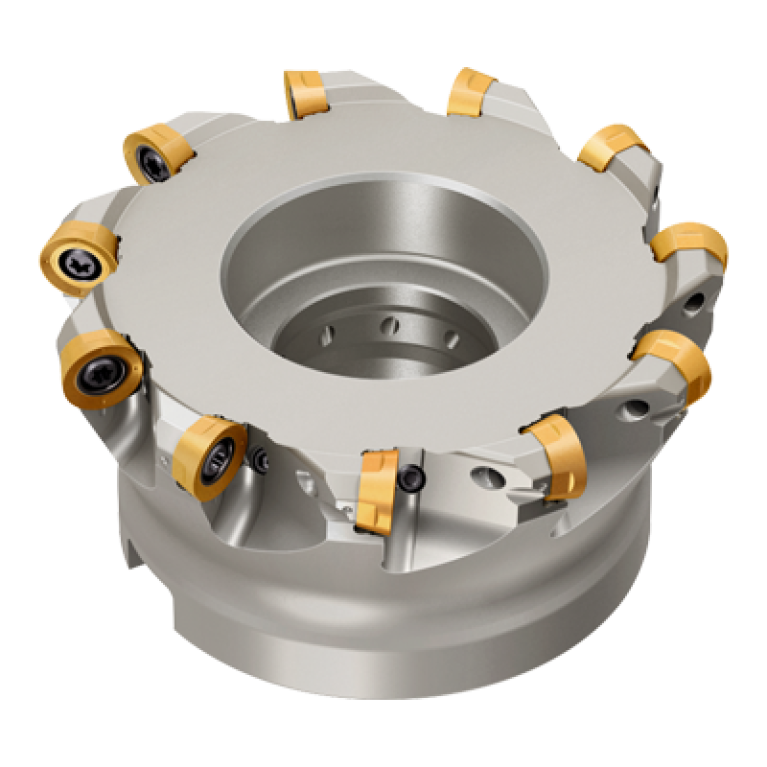

ARP5P-063A08AR

Артикул: 10526996

В наличии

В корзину

Описание

Характеристики

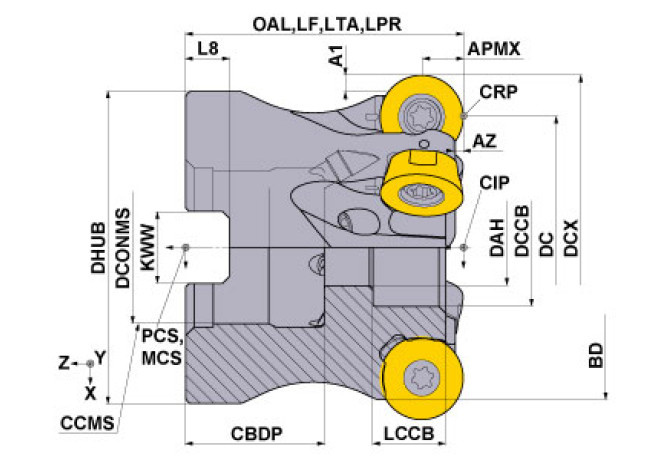

A2A Clearance angle major Pos. A

11 Degree

AZ Plunge depth maximum

2.5 mm

B3A Inscribed circle diameter Pos. A

10 mm

BD Body diameter

50 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

3.97 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

5 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

52.9 mm

DCCB Counterbore diameter connection bore

17 mm

DCX Cutting diameter maximum

63 mm

Delivery state valid from

4/1/2022

DIN

FDA02202200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

face mills

GAMF Rake angle radial

-6 Degree

GAMP Rake angle axial

4 Degree

HAND Cutting direction

R - Right

ID Technical product number

10526996

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202200

MILTTY Mill tool type ISO

A - Face milling cutter shoulder cutter peripheral

Name Identifying order number

ARP5P-063A08AR

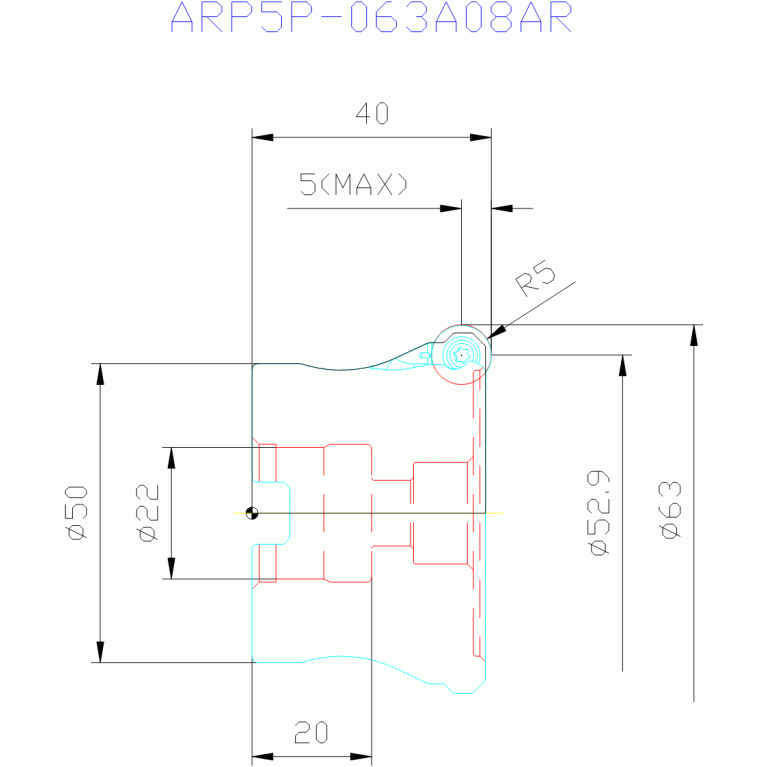

OAL Overall length

40 mm

RMPX Ramping angle maximum

3 Degree

Working process

No working processes available

WT Weight of item

0.46 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
