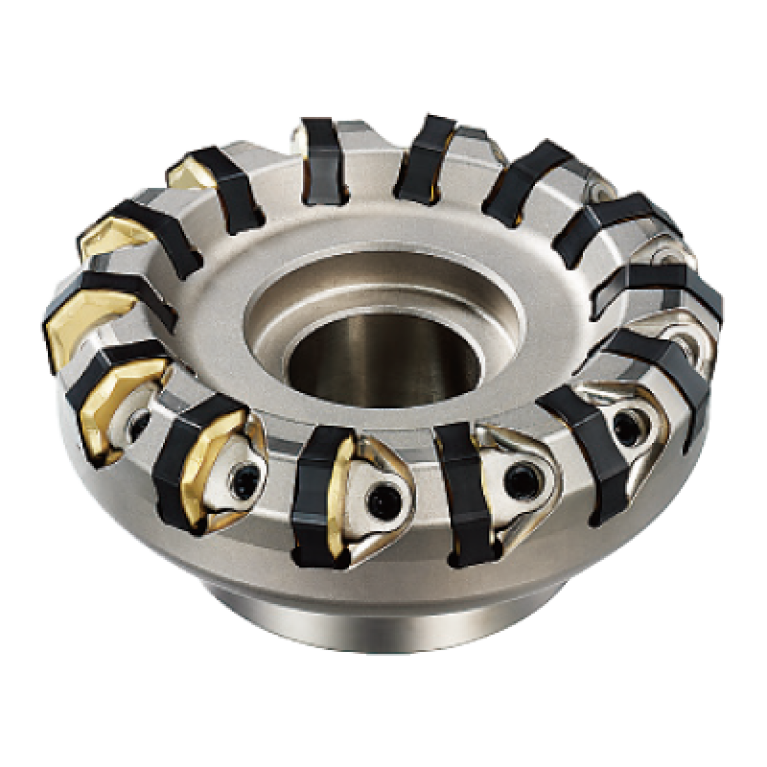

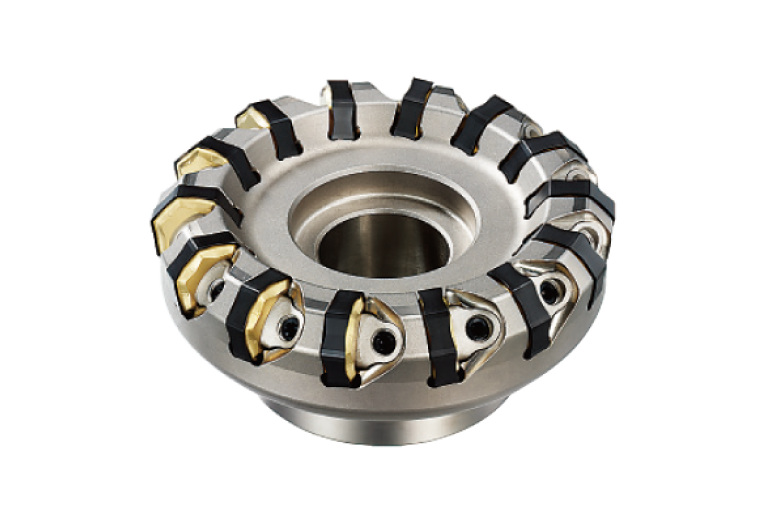

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter AHX640W-160C22L

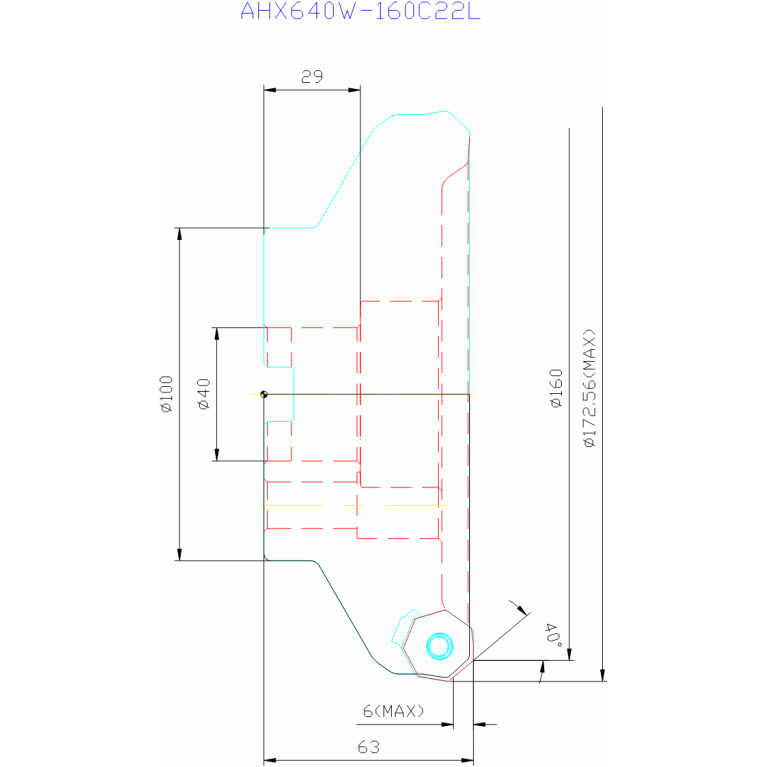

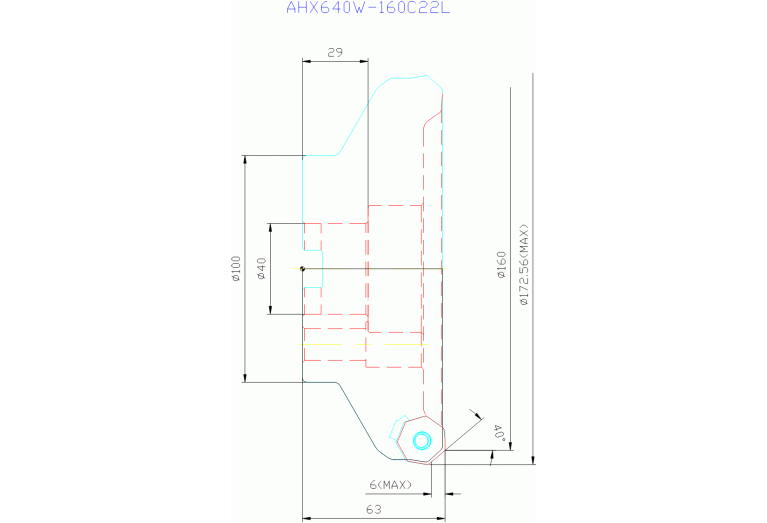

AHX640W-160C22L

Артикул: 505691

В наличии

В корзину

Описание

Характеристики

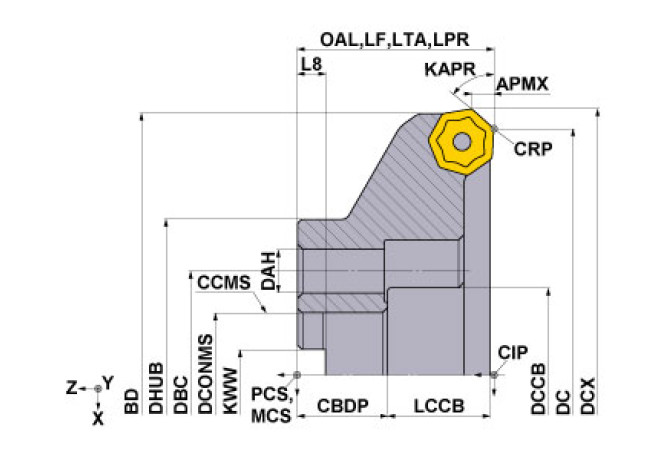

B3A Inscribed circle diameter Pos. A

20 mm

BD Body diameter

100 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

6.55 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

6 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

D6A Wiper edge length Pos. A

1 mm

DC Cutting diameter

160 mm

DCCB Counterbore diameter connection bore

56 mm

DCX Cutting diameter maximum

172.6 mm

Delivery state valid from

4/1/2022

DIN

SPK04002100

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

face mills

GAMF Rake angle radial

-4 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

L - Left

ID Technical product number

505691

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

50 Degree

LCCB Counterbore depth connection bore

32.8 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

SPK Spindle nose mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK04002100

MILTTY Mill tool type ISO

A - Face milling cutter shoulder cutter peripheral

Name Identifying order number

AHX640W-160C22L

OAL Overall length

63 mm

Working process

No working processes available

WT Weight of item

5.6 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
