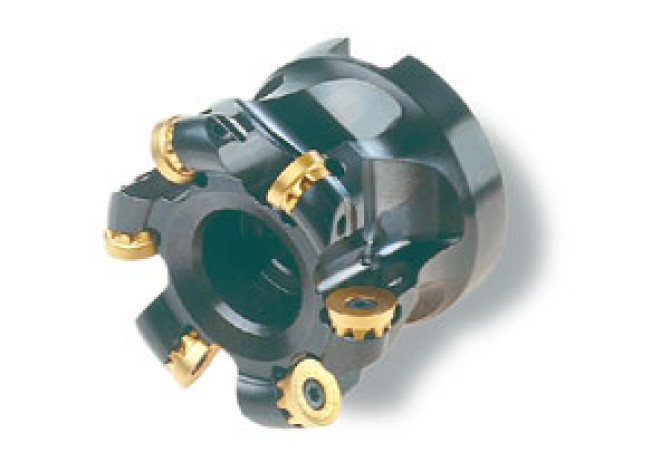

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter A251.40.R.03-10

A251.40.R.03-10

Артикул: A251.40.R.03-10

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

BD Body diameter

38.5 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

5 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

30 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

40 mm

DHUB Hub diameter

38 mm

DIN

FDA01602210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Maximill shell milling cutter

GAMF Rake angle radial

5 Degree

GAMP Rake angle axial

1 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01602210

Name Identifying order number

A251.40.R.03-10

OAL Overall length

40 mm

Working process

FPL - Face milling
