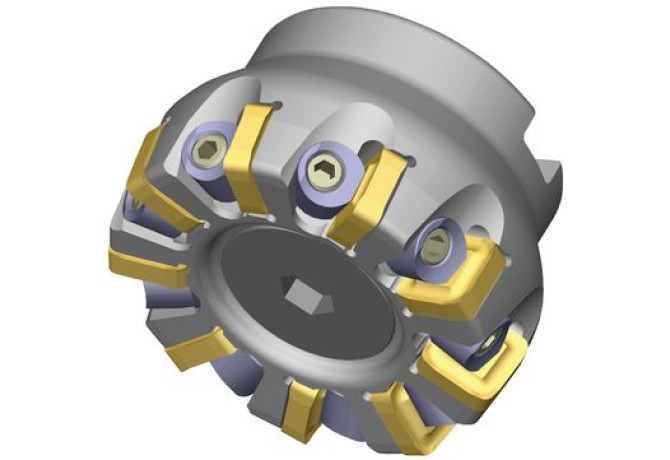

63A03LF84SN12B

Артикул: 2466036

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CDX Cutting depth maximum

5 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

65 mm

Delivery state valid from

10/7/2008

DIN

FDA02202210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

KSSR Face Mills - Fine Pitch - Left Hand

HAND Cutting direction

L - Left

ID Technical product number

2466036

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

84 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202210

Name Identifying order number

63A03LF84SN12B

OAL Overall length

40 mm

RPMX Rotational speed maximum

7600 1/min

Working process

No working processes available

WT Weight of item

0.6 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
