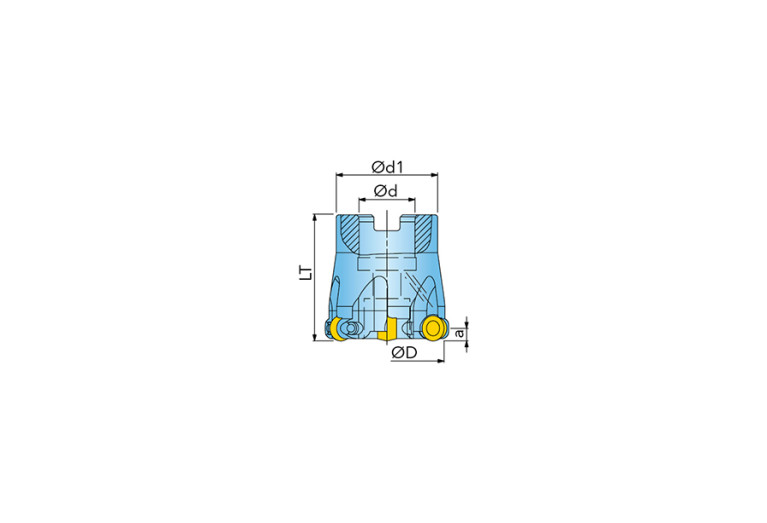

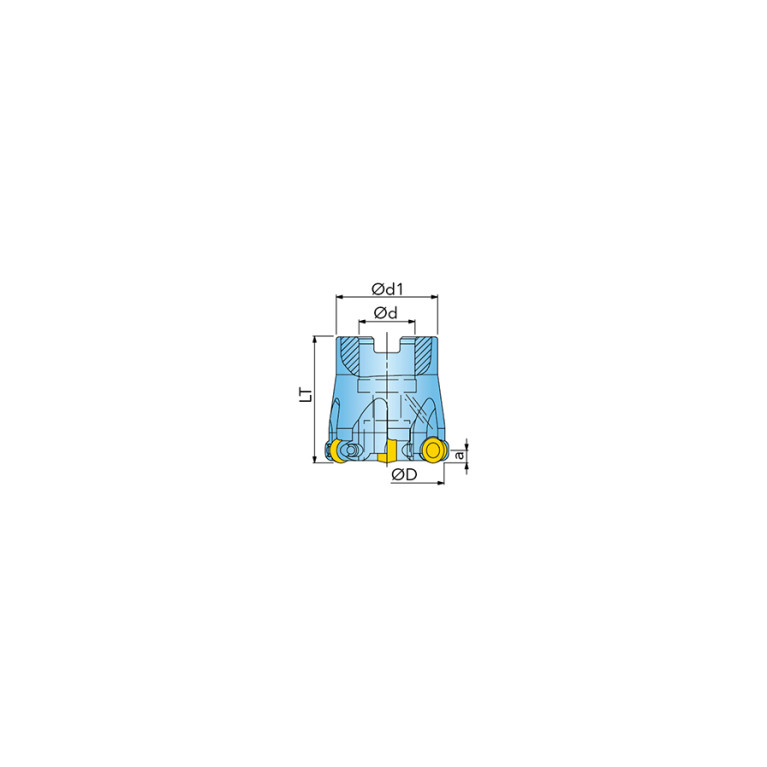

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter 5W2G066R00

5W2G066R00

5W2G066R00 5W2G066R00 5W2G066R00 5W2G066R00

5W2G066R00

Ingersoll
Артикул: 3063246
В наличии
В корзину
Описание
Характеристики
B3A Inscribed circle diameter Pos. A
10 mm
BLDA Tool style code Position A
10
CCONMS Connection count machine side
1
CDX Cutting depth maximum
5 mm
CICT Cutting item count
7
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric

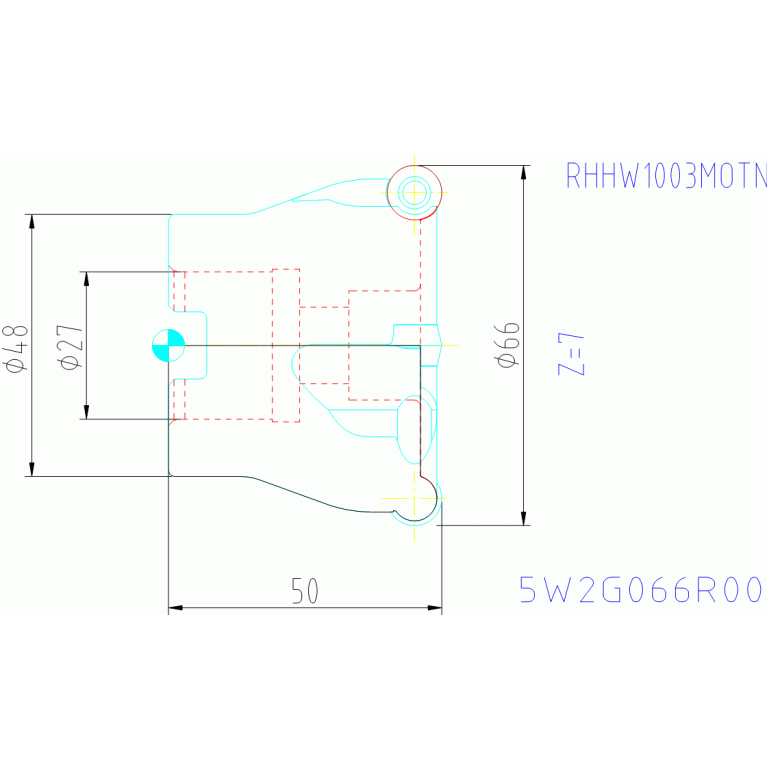

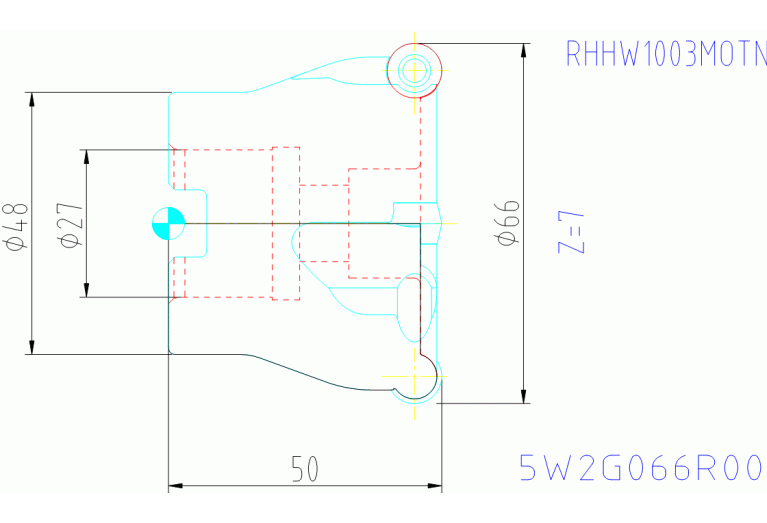

DC Cutting diameter
56 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
66 mm
Delivery state
LH - Stocked
DHUB Hub diameter
48 mm
DIN
FDA02702210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Copy Face Mill 5W2G
HAND Cutting direction
R - Right
ID Technical product number
3063246
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702210
Name Identifying order number
5W2G066R00
OAL Overall length
50 mm
RMPX Ramping angle maximum
3 Degree
Working process
No working processes available
WT Weight of item
0.6 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
