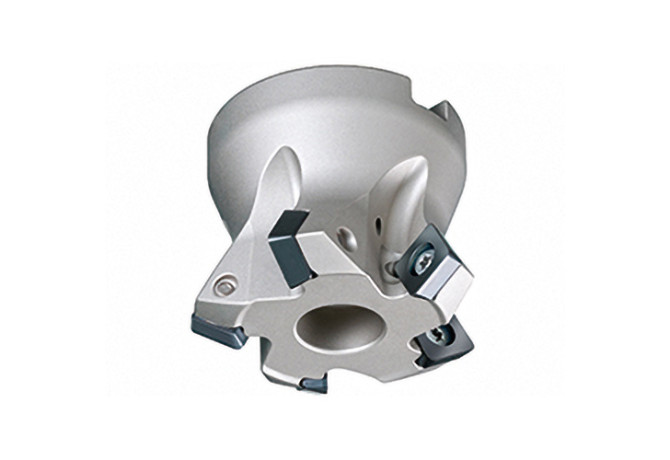

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter 5M5P063R30

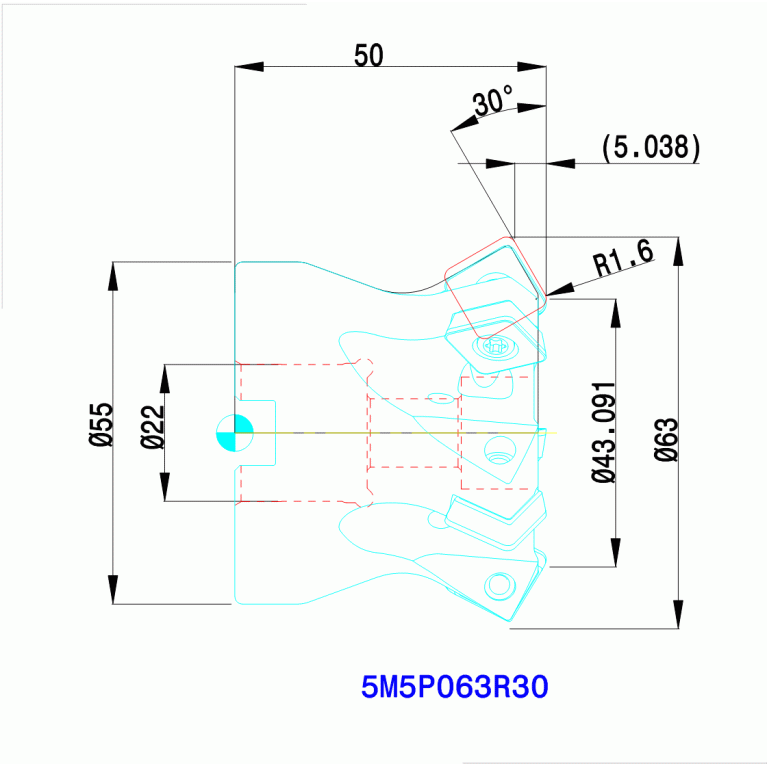

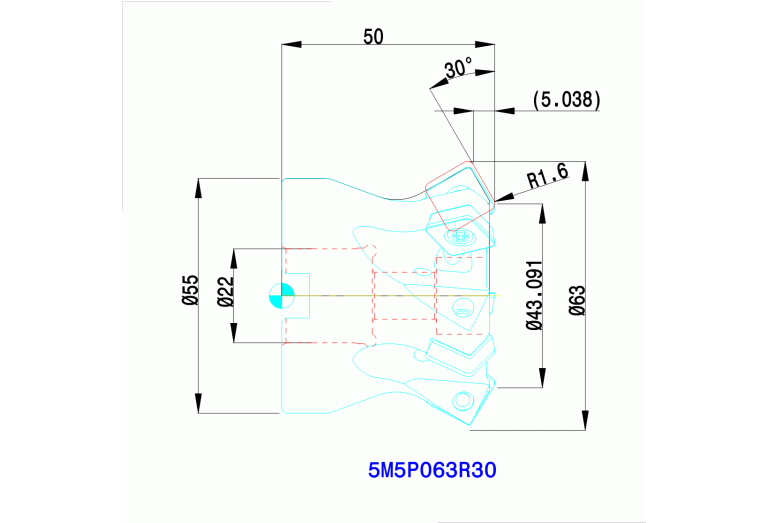

5M5P063R30

5M5P063R30

Ingersoll

Артикул: 5879466

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A2A Clearance angle major Pos. A

15 Degree

B1A Cutting edge length Pos. A

10 mm

B2A Insert width Pos. A

13 mm

B3A Inscribed circle diameter Pos. A

13 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

5.16 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

4.9 mm

CICT Cutting item count

6

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

1.5 mm

DC Cutting diameter

43.1 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

63 mm

Delivery state valid from

10/15/2023

DHUB Hub diameter

55 mm

DIN

FDA02202210

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

6

FamilyProducts

Face Mill 30° 5M P

HAND Cutting direction

R - Right

ID Technical product number

5879466

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

30 Degree

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202210

Name Identifying order number

5M5P063R30

OAL Overall length

50 mm

Working process

FEC - Square shoulder milling

WT Weight of item

0.5 kg

ZEFF Face effective cutting edge count

6

ZEFP Peripheral effective cutting edge count

6
