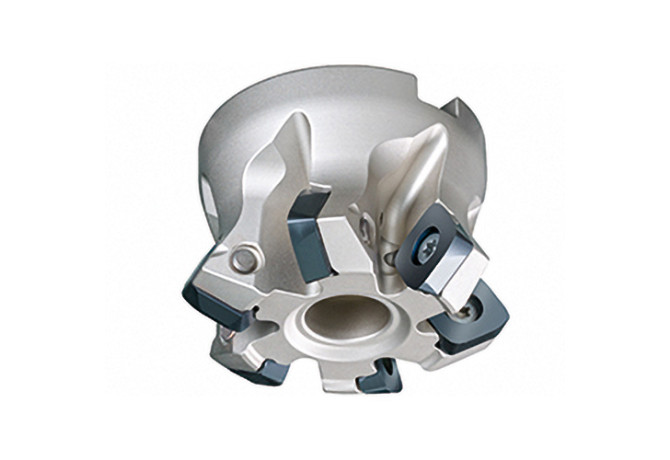

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter 5G5M125R30

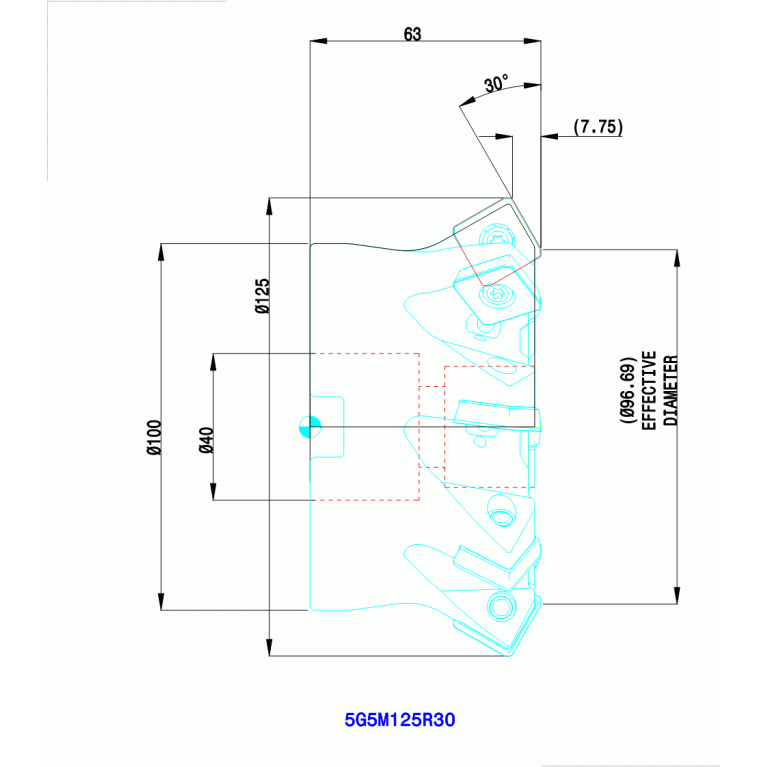

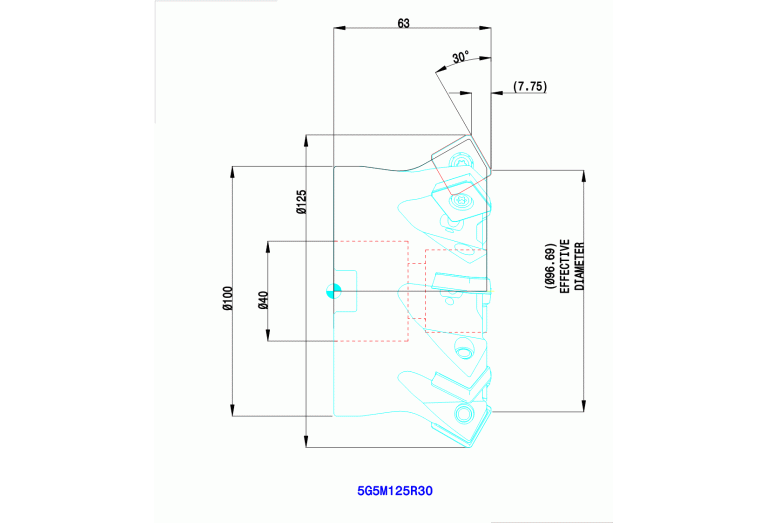

5G5M125R30

5G5M125R30

Ingersoll

Артикул: 5879483

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A2A Clearance angle major Pos. A

0 Degree

B1A Cutting edge length Pos. A

18.952 mm

B2A Insert width Pos. A

18.95 mm

B3A Inscribed circle diameter Pos. A

18.95 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

6.35 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

7.8 mm

CICT Cutting item count

8

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

96.7 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

125 mm

Delivery state

LL - Stock limited

DHUB Hub diameter

100 mm

DIN

SPK04000110

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

8

FamilyProducts

Face Mill 30° 5G5M

HAND Cutting direction

R - Right

ID Technical product number

5879483

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

30 Degree

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

SPK Spindle nose mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK04000110

Name Identifying order number

5G5M125R30

OAL Overall length

63 mm

Working process

No working processes available

WT Weight of item

2.7 kg

ZEFF Face effective cutting edge count

8

ZEFP Peripheral effective cutting edge count

8
