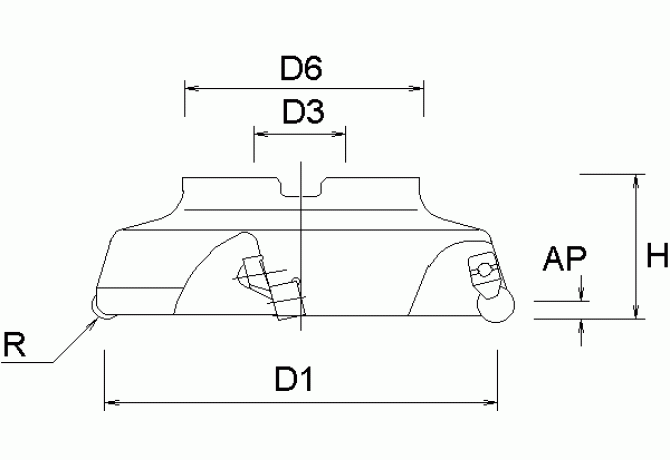

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter 4.01207R232

4.01207R232

Артикул: 4.01207R232

В наличии

В корзину

Описание

Характеристики

BI Block index

CCONMS Connection count machine side

COMPC Company code

KH - Kennametal

DC Cutting diameter

125 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DHUB Hub diameter

80 mm

DIN

KH-FWPI R23240

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

FACE MILL RNGN 1207

HAND Cutting direction

R - Right

ID Technical product number

4.01207R232

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

LOC-01 BI Block index

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

KH-WP KD RNGN1207

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-FWPI R23240

Name Identifying order number

4.01207R232

OAL Overall length

63 mm

Working process

No working processes available

WT Weight of item

3.1 kg

ZEFP Peripheral effective cutting edge count
