Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter 224800 250/12

224800 250/12

Артикул: 224800 250/12

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

BD Body diameter

140 mm

BLDA Tool style code Position A

CCONMS Connection count machine side

CDX Cutting depth maximum

16.8 mm

CICT Cutting item count

COMPC Company code

HOG - Hoffmann Group

DC Cutting diameter

250 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHUB Hub diameter

140 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

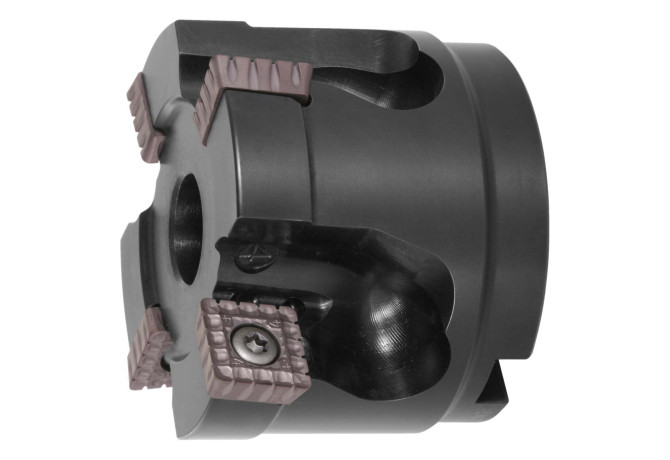

90° indexable face mill MSRS90

GAMF Rake angle radial

7 Degree

GAMP Rake angle axial

-10 Degree

HAND Cutting direction

R - Right

Interface codes

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

SPK Spindle nose mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0600

LOC-03 DCONMS Diameter

60 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

224800 250/12

OAL Overall length

60 mm

Working process

No working processes available

WT Weight of item

12.6 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
