Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter 223603 50/5

223603 50/5

Артикул: 223603 50/5

В наличии

В корзину

Описание

Характеристики

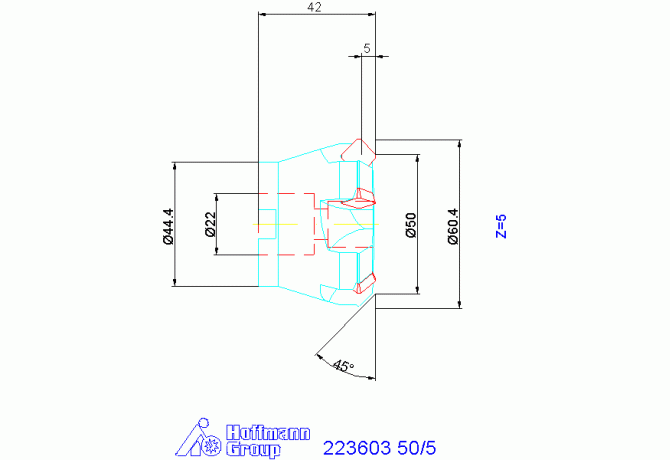

A1A Cutting edge angle major Pos. A

90 Degree

BD Body diameter

57.7 mm

BLDA Tool style code Position A

CCONMS Connection count machine side

CDX Cutting depth maximum

5 mm

CICT Cutting item count

COMPC Company code

HOG - Hoffmann Group

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

60.4 mm

Delivery state valid from

1/11/2017

DHUB Hub diameter

44.4 mm

DIN

FDA02200200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Stellram 7745VSE09

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02200200

Name Identifying order number

223603 50/5

OAL Overall length

42 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
