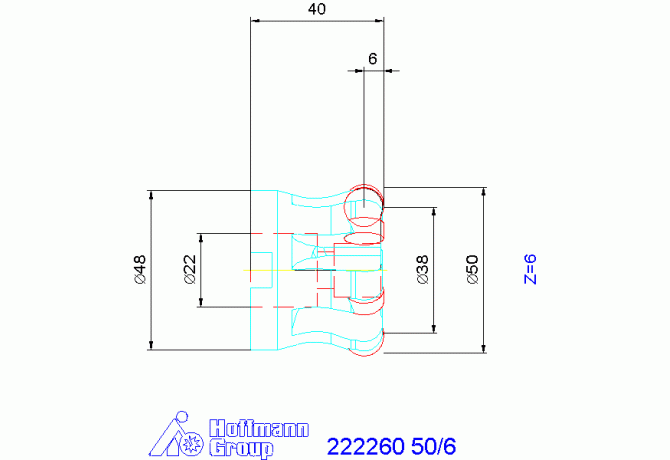

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter 222260 50/6

222260 50/6

222260 50/6 222260 50/6

222260 50/6

Hoffmann Group
Артикул: 222260 50/6
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12 mm
BD Body diameter
48 mm
BI Block index
1
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
4.65 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
6 mm
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
38 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
50 mm
Delivery state valid from
1/11/2017
DHUB Hub diameter
48 mm
DIN
FDA02202210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
KYOCERA Indexable face milling cutter 45° MRW
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
12 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
21 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
ROMU1204M0
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
RO1204M03N
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
ROMU1204M0
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
RO1204M03N
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202210
MIID Master insert identification
ROMU1204M0
Name Identifying order number
222260 50/6
OAL Overall length
40 mm
Working process
No working processes available
WT Weight of item
0.3 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
