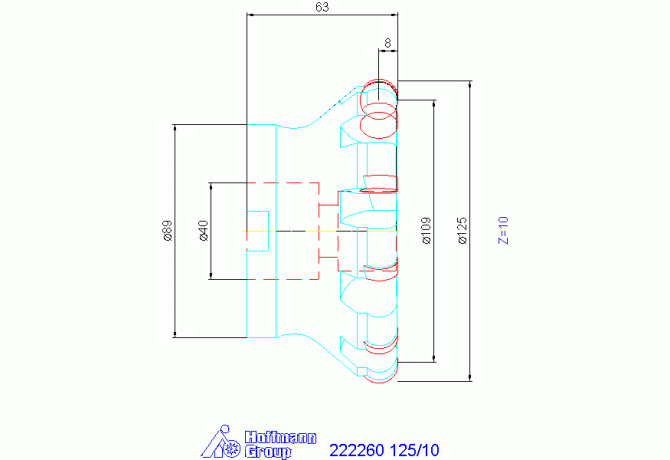

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter 222260 125/10

222260 125/10

222260 125/10

Hoffmann Group

Артикул: 222260 125/10

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

16 mm

BD Body diameter

120.5 mm

BI Block index

1

BLDA Tool style code Position A

10

C1A Insert thickness Pos. A

5.56 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

8 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

109 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

125 mm

Delivery state valid from

1/11/2017

DHUB Hub diameter

89 mm

DIN

FDA04002210

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

10

FamilyProducts

KYOCERA Indexable face milling cutter 45° MRW

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

11 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

33 mm

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

ROMU1605M0

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

RO1605M03N

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

ROMU1605M0

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

RO1605M03N

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04002210

MIID Master insert identification

ROMU1605M0

Name Identifying order number

222260 125/10

OAL Overall length

63 mm

Working process

No working processes available

WT Weight of item

2.5 kg

ZEFF Face effective cutting edge count

10

ZEFP Peripheral effective cutting edge count

10
