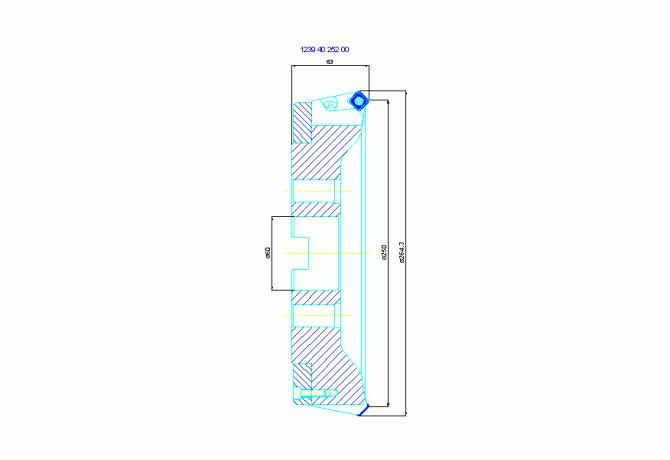

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter 12394025200

12394025200

Артикул: 12394025200

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A2A Clearance angle major Pos. A

0 Degree

ADJBY Adjustment property

0 - Adjustment not possible

B1A Cutting edge length Pos. A

12.7 mm

B2A Insert width Pos. A

12.7 mm

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

5.56 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

6.4 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

WI - Widia

CXSC Coolant exit style code

0 - Without coolant exit

D4A Cutting edge angle major Pos. A

45 Degree

DC Cutting diameter

250 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

264.3 mm

Delivery state valid from

1229.5 €

DIN

FKA06000100

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Cart. face mill for roughing, coarse & not adjust.

HAND Cutting direction

R - Right

ID Technical product number

12394025200

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FKA

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0600

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FKA06000100

Name Identifying order number

12394025200

OAL Overall length

63 mm

Working process

FPL - Face milling

ZEFP Peripheral effective cutting edge count
