Главная Каталог продукции Toolunited 14 310-06 - Turning tool no 7 - grooving and cut-off design 270360 6,2/1,5

270360 6,2/1,5

Артикул: 270360 6,2/1,5

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

1.5 mm

COMPC Company code

HOG - Hoffmann Group

Delivery state valid from

1/11/2017

DIN

HOG-MICROT6

FamilyProducts

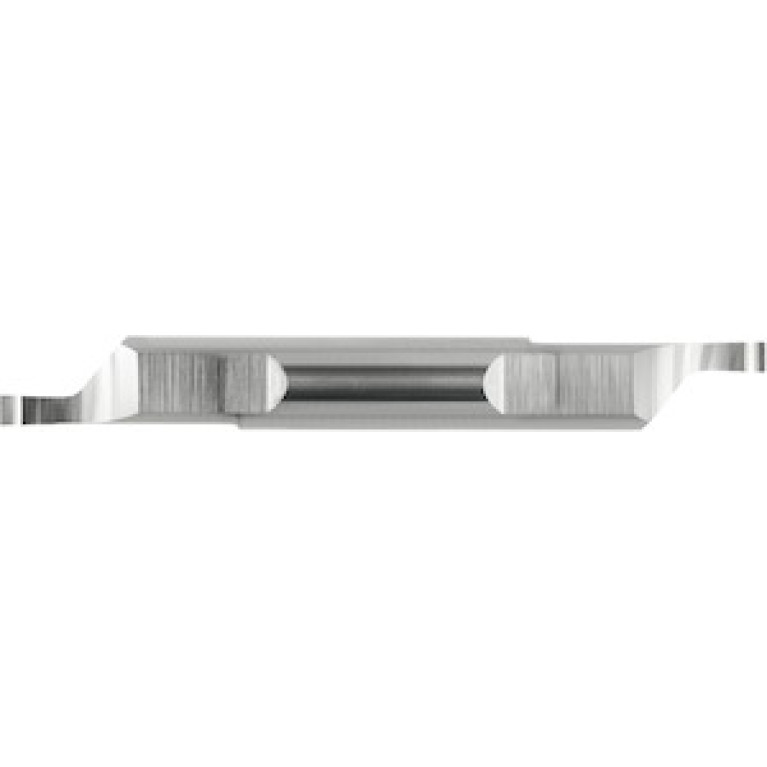

GARANT Axial grooving insert, internal right-hand

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

310-06 - Turning tool no 7 - grooving and cut-off design

LH Head length

18.38 mm

LOC-03 B Shank width

5.76 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HOG-MICROT6

Name Identifying order number

270360 6,2/1,5

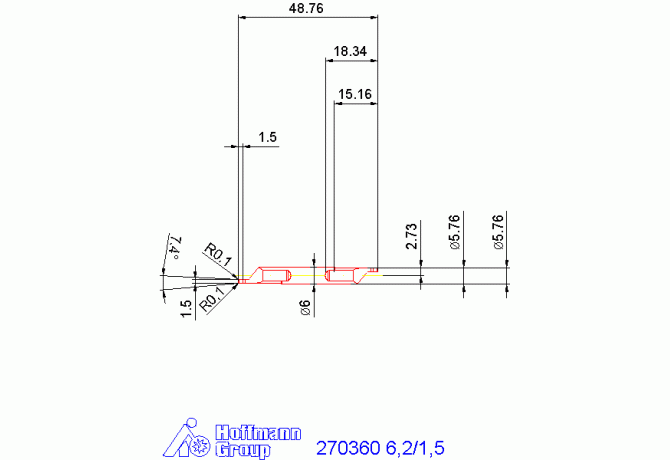

OAL Overall length

48.8 mm

WF Functional width

2.73 mm

Working process

No working processes available

WT Weight of item

0.017 kg
