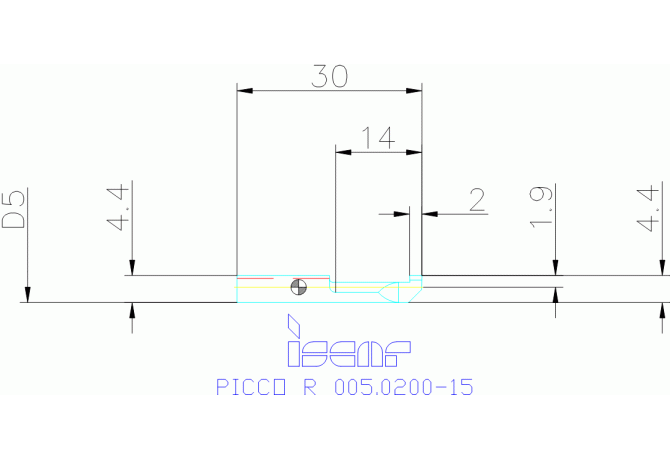

PICCO R 005.0200-15 IC228
PICCO R 005.0200-15 IC228
Артикул:
6402352
В наличии
Характеристики
CDX Cutting depth maximum
1 mm
COMPC Company code
IS - Iscar
Delivery state valid from
8/25/2016
DIN
ZYL00502205
FamilyProducts
PICCO R 005.0200-15 IC228
ID Technical product number
6402352
Interface codes
J6 /
ISYC Subclass
310-00 - Turning tool with carbide tips unspecified
L Cutting edge length
2 mm
LF Functional length
30 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0050
LOC-03 DCONMS Diameter
5 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00502205
Name Identifying order number
PICCO R 005.0200-15 IC228
OAL Overall length
30 mm
TCDCONMS ISO-tolerance class shank diameter
h6
WF Functional width
4.4 mm
Working process
No working processes available
