270324 4,2/1
270324 4,2/1
Артикул:
270324 4,2/1
В наличии
Характеристики

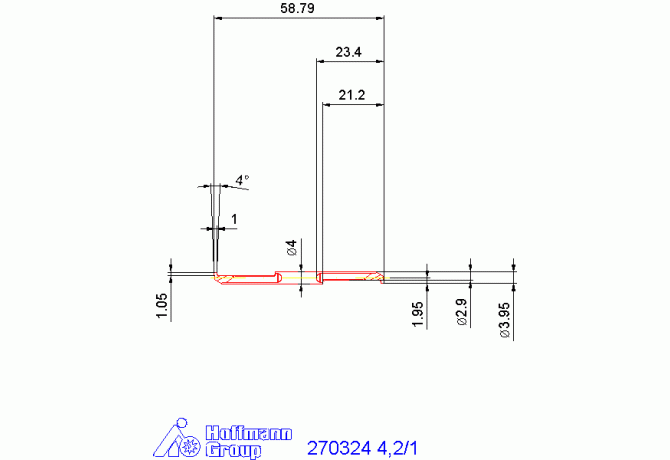

CDX Cutting depth maximum
1.05 mm
COMPC Company code
HOG - Hoffmann Group
Delivery state valid from
1/11/2017
DIN
HOG-MICROT4
DMIN Minimum bore diameter
3.95 mm
EPSR Insert included angle
4 Degree
FamilyProducts
GARANT Grooving insert, internal, left-hand
HAND Cutting direction
L - Left
Interface codes
J6 /
ISYC Subclass
310-00 - Turning tool with carbide tips unspecified
LH Head length
23.4 mm
LOC-03 B Shank width
2.9 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0040
LOC-03 DCONMS Diameter
4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HOG-MICROT4
Name Identifying order number
270324 4,2/1
OAL Overall length
58.8 mm
Working process
No working processes available
WT Weight of item
0.011 kg
