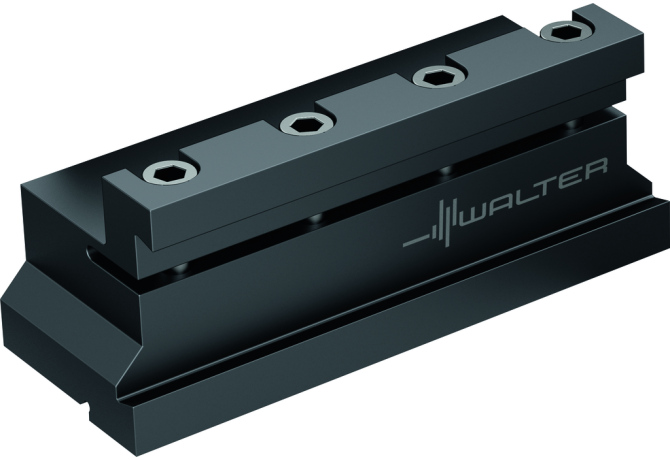

Главная Каталог продукции Toolunited 14 401-02 - Converter, stationary SBN3229-46-K

SBN3229-46-K

Артикул: 5009208

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

PMW

CCUWS Unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Size code

0460

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT32290105

FamilyProducts

Clamping block SBN

HAND Cutting direction

R - Right

HF Functional height

-3.92 mm

ID Technical product number

5009208

Interface codes

J6 / J61

ISO

VKT01A3229$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

LF Functional length

144 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

PMW Prism mounting WOHLHAUPTER

LOC-01 CCUWS Unit base

8 non-dimensional size

LOC-01 CZCWS Size code

0460

LOC-01 ISO

PMW01C0460****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

PMW04600185

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

PMW Prism mounting WOHLHAUPTER

LOC-02 CCUWS Unit base

8 non-dimensional size

LOC-02 CZCWS Size code

0460

LOC-02 ISO

PMW01C046L****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

PMW046L0185

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

3229

LOC-03 ISO

VKT01A3229$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32290105

LPR Protruding length

150 mm

Name Identifying order number

SBN3229-46-K

OAH Overall height

70 mm

OAL Overall length

150 mm

OAW Overall width

52 mm

RADH Radial height

19.1 mm

WF Functional width

43.98 mm

WT Weight of item

2.28 kg
