Главная Каталог продукции Toolunited 14 309-14 - System tool, neutral design for OD turning CRDCN3225P12-A

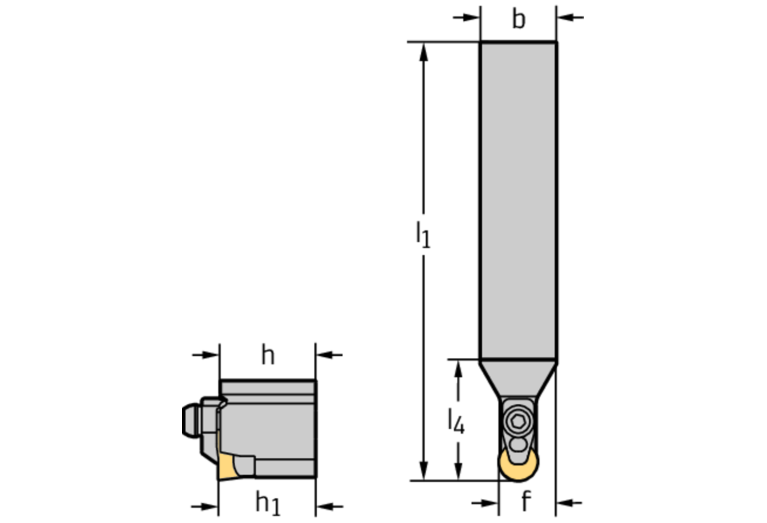

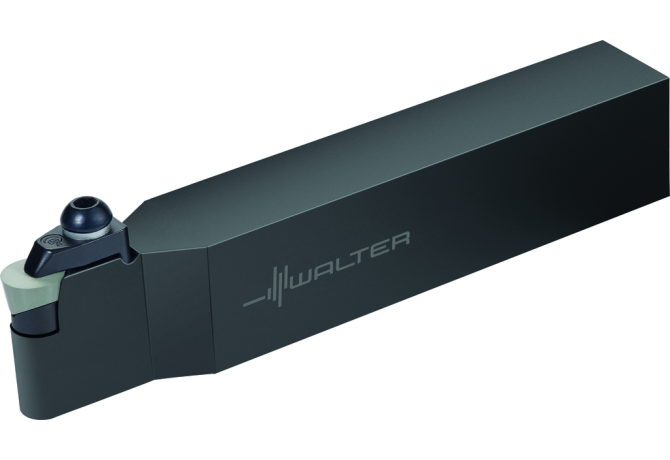

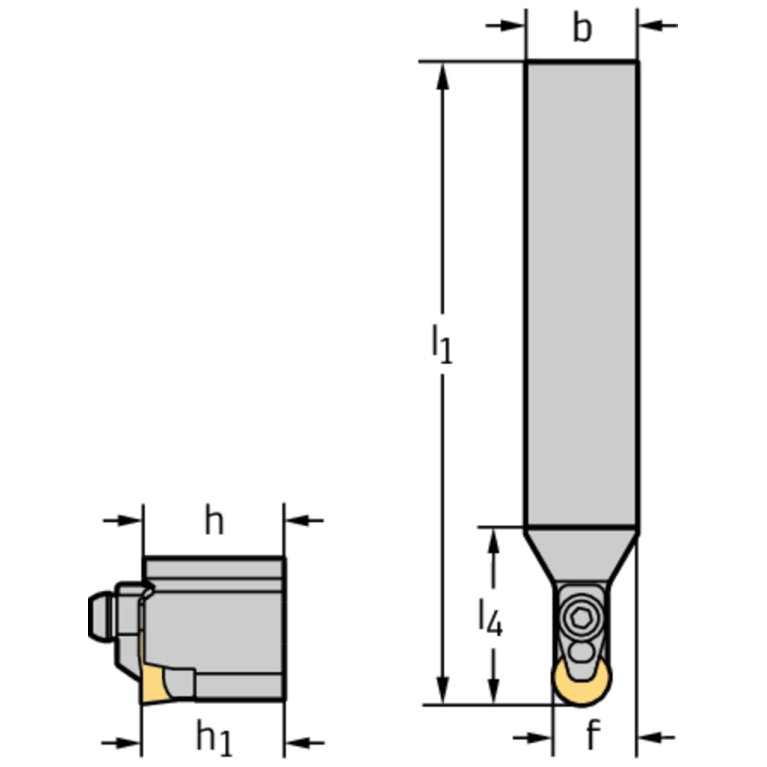

CRDCN3225P12-A

Артикул: 6296391

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

6.35 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT32250105

DIN CSW1

RC120700*N

FamilyProducts

Shank tool – Rigid clamping CRDC

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

N - Neutral

HF Functional height

32 mm

ID Technical product number

6296391

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

VKT01A3225$$$$

ISO CSW1

ISO$RC120700*****00

ISYC Subclass

309-14 - System tool, neutral design for OD turning

KAPR Tool cutting edge angle

0 Degree

LAMS Inclination angle

0 Degree

LF Functional length

170 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

3225

LOC-03 ISO

VKT01A3225$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32250105

LPR Protruding length

170 mm

LTA Length tool assembly

170 mm

MIID Master insert identification

RCGX 12 07 00

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CRDCN3225P12-A

OAL Overall length

170 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

18.8 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.992 kg
