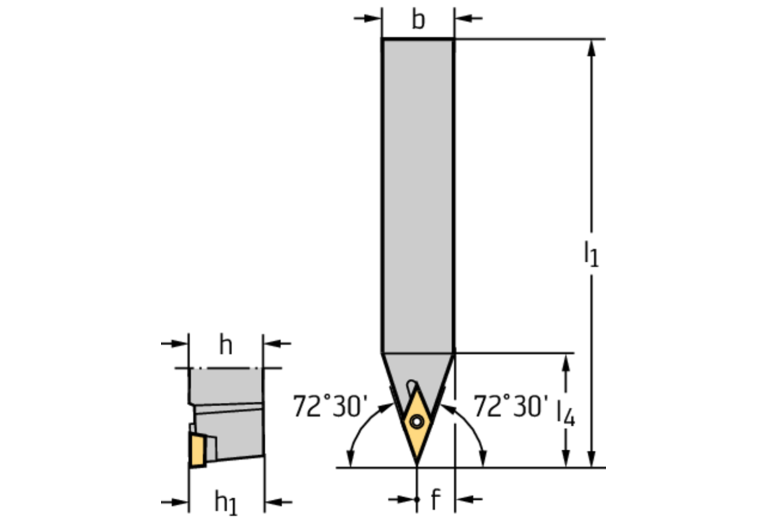

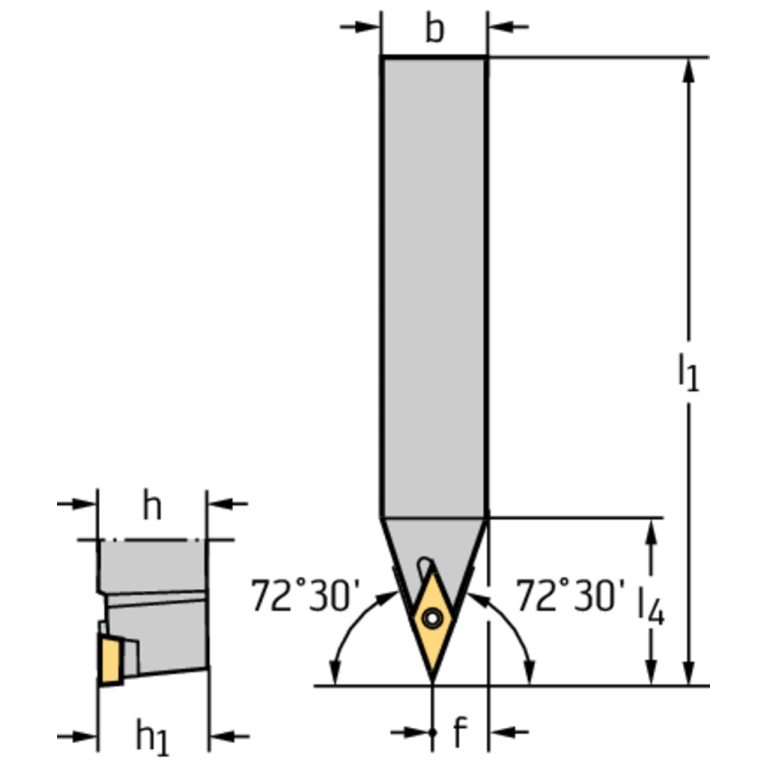

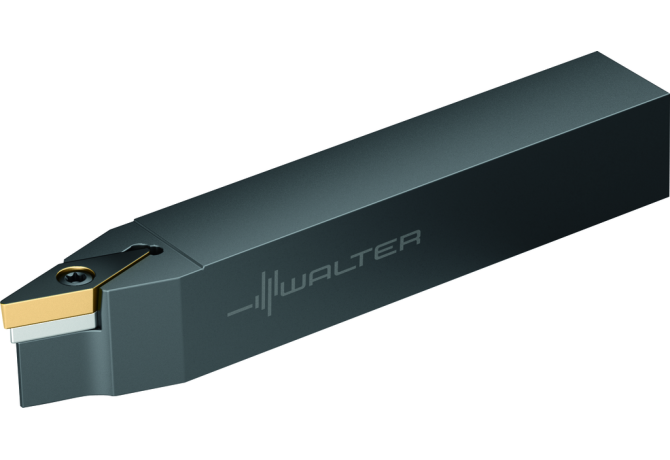

SVVBN2020K11

SVVBN2020K11 SVVBN2020K11 SVVBN2020K11

SVVBN2020K11

Walter
Артикул: 5327132
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT20200105
DIN CSW1
VB1103993N
EPSR Insert included angle
35 Degree
FamilyProducts
Shank tool – Screw clamping SVVB
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
N - Neutral
HF Functional height
20 mm
ID Technical product number
5327132
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
VKT01A2020$$$$
ISO CSW1
ISO$VB1103003******
ISYC Subclass
309-14 - System tool, neutral design for OD turning
KAPR Tool cutting edge angle
72.5 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
0 Degree
LF Functional length
125 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
2020
LOC-03 ISO
VKT01A2020$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
LPR Protruding length
125 mm
LTA Length tool assembly
125 mm
MIID Master insert identification
VBMT 11 03 04
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SVVBN2020K11
OAL Overall length
125 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
10.3 mm
Working process
DDA - External turning,DFA - External form turning
WT Weight of item
0.368 kg
