Главная Каталог продукции Toolunited 14 309-14 - System tool, neutral design for OD turning C5-DCMNN-00105-12

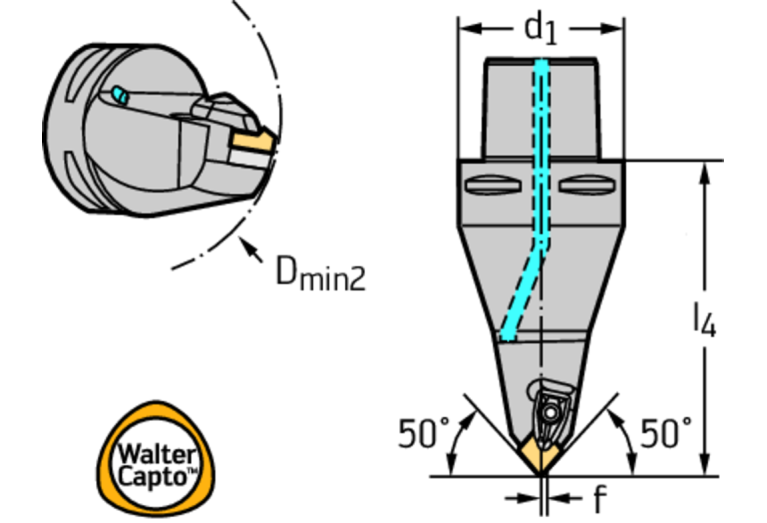

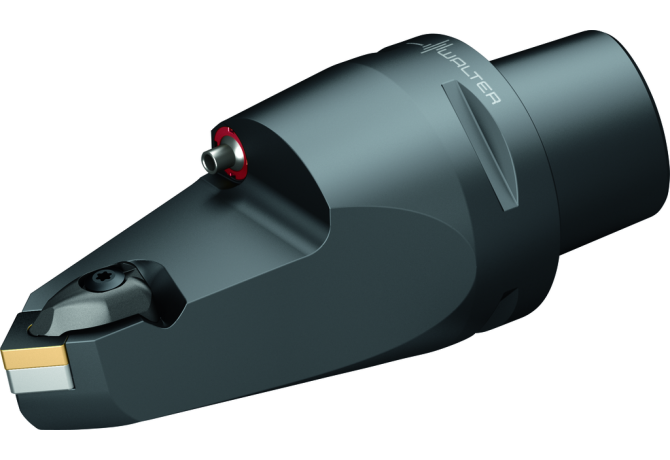

C5-DCMNN-00105-12

C5-DCMNN-00105-12 C5-DCMNN-00105-12 C5-DCMNN-00105-12

C5-DCMNN-00105-12

Walter
Артикул: 5325910
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000195
DIN CSW1
CN1204992N
DMIN Minimum bore diameter
110 mm
EPSR Insert included angle
80 Degree
FamilyProducts
45° turning tools – Rigid clamping C...-DCMN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
N - Neutral
HF Functional height
0 mm
ID Technical product number
5325910
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0500$$$$
ISO CSW1
ISO$CN1204002******
ISYC Subclass
309-14 - System tool, neutral design for OD turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12.9 mm
LAMS Inclination angle
-6 Degree
LF Functional length
105 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
135 mm
LTA Length tool assembly
105 mm
MIID Master insert identification
CNMG 12 04 08
MTP Clamping type code
D
Name Identifying order number
C5-DCMNN-00105-12
OAL Overall length
135 mm
STDNO Standard
ISO26623-1
THSC Tool holder shape code
G - straight shank design
WF Functional width
0.3 mm
Working process
DDA - External turning,DDI - Internal turning,DFA - External form turning
WT Weight of item
1.134 kg
