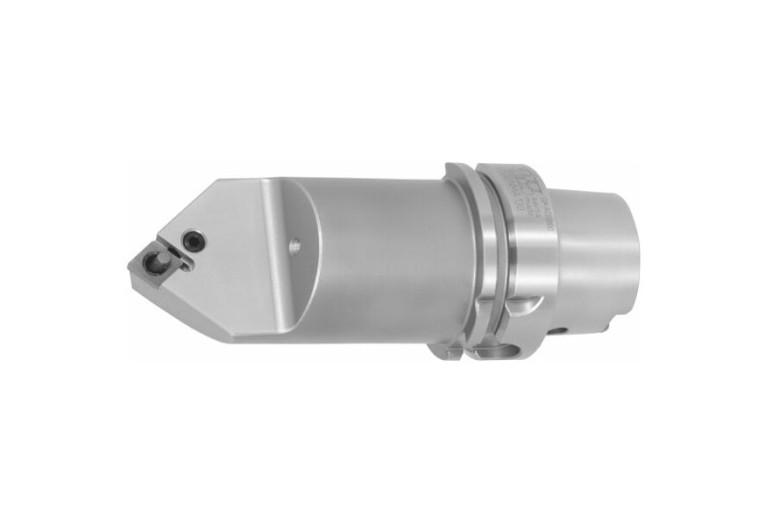

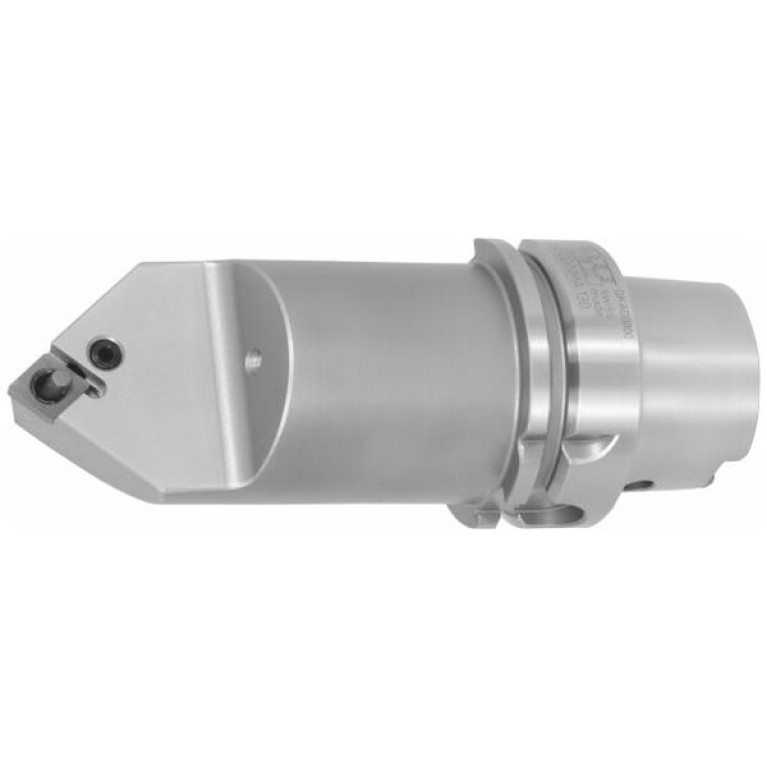

Главная Каталог продукции Toolunited 14 309-14 - System tool, neutral design for OD turning 320065 6316-130HP

320065 6316-130HP

320065 6316-130HP 320065 6316-130HP 320065 6316-130HP

320065 6316-130HP

Hoffmann Group
Артикул: 320065 6316-130HP
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
HSK06300785
EPSR Insert included angle
80 Degree
FamilyProducts
Lever-lock toolholder neutral
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
309-14 - System tool, neutral design for OD turning
KAPR Tool cutting edge angle
50 Degree
L Cutting edge length
15.31 mm
LAMS Inclination angle
-7 Degree
LF Functional length
130 mm
LFA A dimension on lf
0 mm
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300785
LPR Protruding length
130 mm
LTA Length tool assembly
130 mm
MIID Master insert identification
CNMG1606
Name Identifying order number
320065 6316-130HP
OAL Overall length
161.9 mm
STDDES Standard designation
PCMNN
THSC Tool holder shape code
G - straight shank design
WF Functional width
0 mm
WFA A dimension on wf
9.84 mm
Working process
No working processes available
WT Weight of item
1.843 kg
