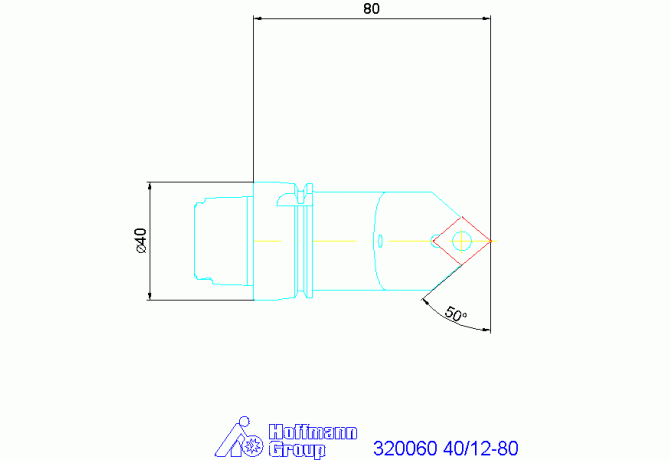

Главная Каталог продукции Toolunited 14 309-14 - System tool, neutral design for OD turning 320060 40/12-80

320060 40/12-80

320060 40/12-80 320060 40/12-80 320060 40/12-80

320060 40/12-80

Hoffmann Group
Артикул: 320060 40/12-80
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
HSK04000795
DIN CSW1
CC1204 3N
EPSR Insert included angle
80 Degree
FamilyProducts
Screw-on toolholder neutral
GAMF Rake angle radial
0 Degree
HAND Cutting direction
N - Neutral
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-14 - System tool, neutral design for OD turning
KAPR Tool cutting edge angle
50 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
0 Degree
LF Functional length
80 mm
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK04000795
LPR Protruding length
80 mm
LTA Length tool assembly
80 mm
MIID Master insert identification
CC..1204..
Name Identifying order number
320060 40/12-80
WF Functional width
0 mm
Working process
No working processes available
WT Weight of item
0.427 kg
