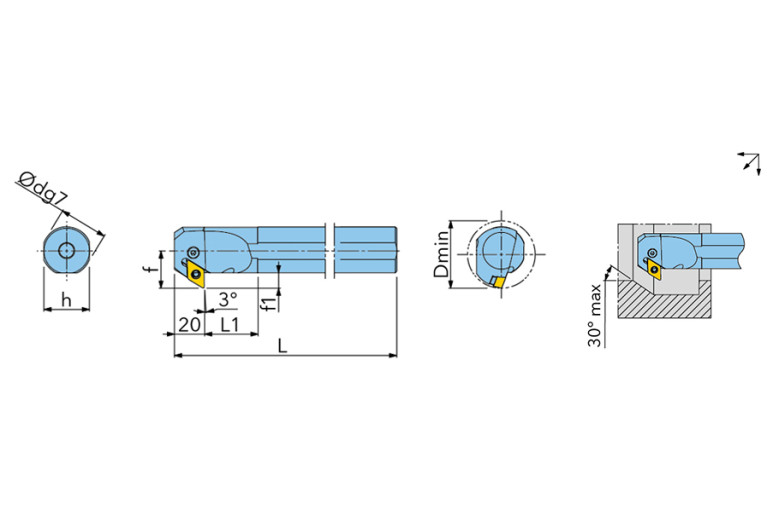

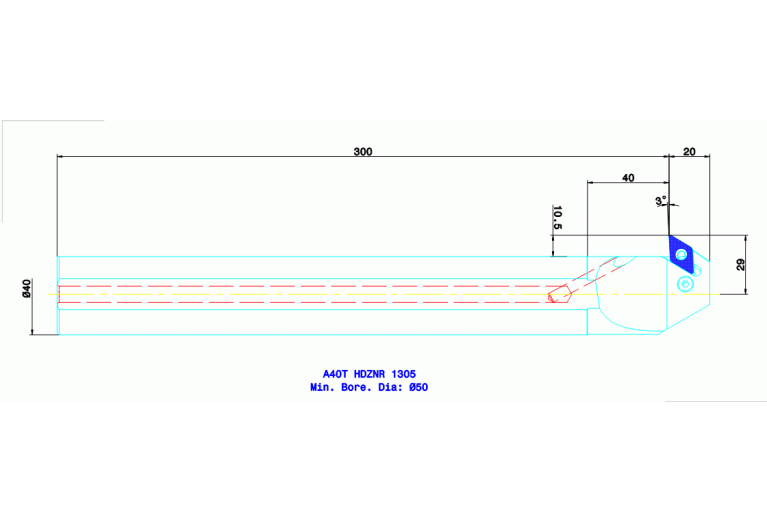

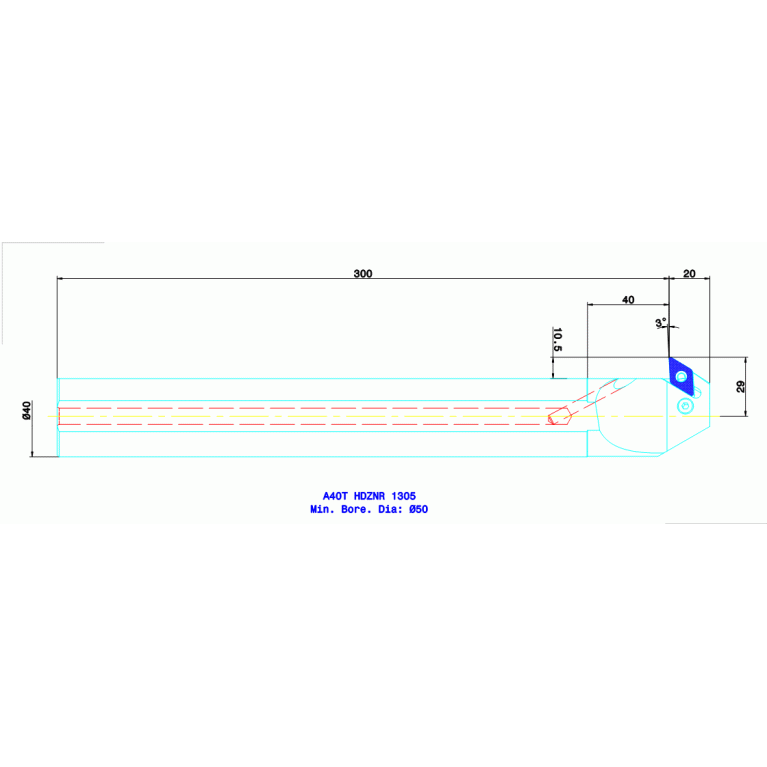

A40T HDZNR 1305
A40T HDZNR 1305
Артикул:
6121379
В наличии
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DIN
ZYL04002215
DIN CSW1
DN1305012N
DMIN Minimum bore diameter
50 mm
EPSR Insert included angle
55 Degree
FamilyProducts
A-HDZNR/L 1305
HAND Cutting direction
R - Right
ID Technical product number
6121379
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-06 - Pull back boring bar
KAPR Tool cutting edge angle
93 Degree
LF Functional length
300 mm
LH Head length
40 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 H Shank height
37 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04002215
MIID Master insert identification
DN 1305
Name Identifying order number
A40T HDZNR 1305
OAL Overall length
300 mm
WF Functional width
29 mm
Working process
No working processes available
WT Weight of item
2.75 kg
