Главная Каталог продукции Toolunited 14 309-06 - Pull back boring bar A12M-SDZXL07-D140

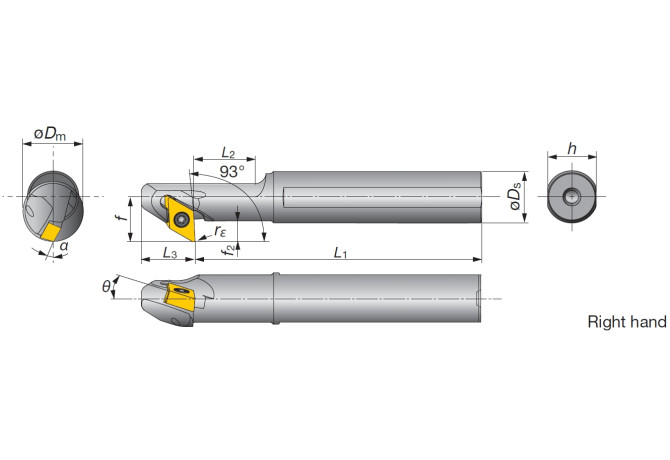

A12M-SDZXL07-D140

A12M-SDZXL07-D140

A12M-SDZXL07-D140

A12M-SDZXL07-D140

A12M-SDZXL07-D140

Tungaloy

Артикул: 6709248

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.18 mm

CEATC Tool cutting edge angle type code

P - Pull back

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2013

DIN

ZYL01202205

DIN CSW1

DX0703 3L

DMIN Minimum bore diameter

14 mm

EPSR Insert included angle

55 Degree

FamilyProducts

TAC boring bar SDZXR/L for internal retracting

GAMF Rake angle radial

-14 Degree

GAMP Rake angle axial

-10 Degree

HAND Cutting direction

L - Left

HF Functional height

5.5 mm

ID Technical product number

6709248

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-06 - Pull back boring bar

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

7 mm

LF Functional length

150 mm

LFA A dimension on lf

13 mm

LH Head length

43 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 H Shank height

11 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202205

MIID Master insert identification

DXGU070304L

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A12M-SDZXL07-D140

OAL Overall length

163 mm

STDDES Standard designation

A12M-SDZXL07-D140

SX Shank cross section shape code

31 - (left) Round shank

WFA A dimension on wf

4.5 mm

Working process

DDI - Internal turning
