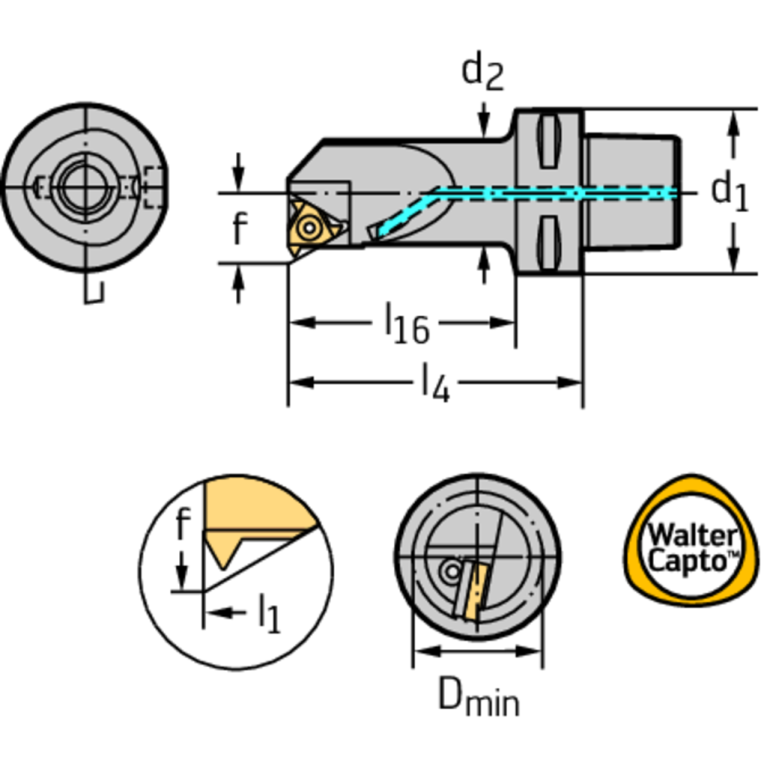

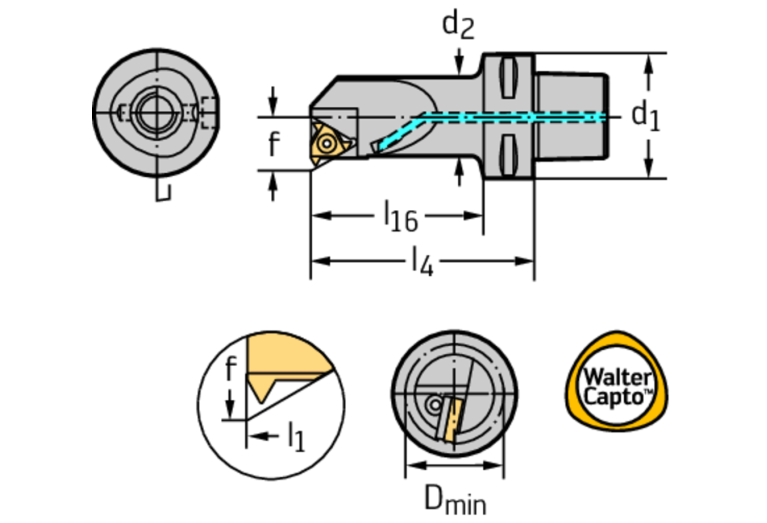

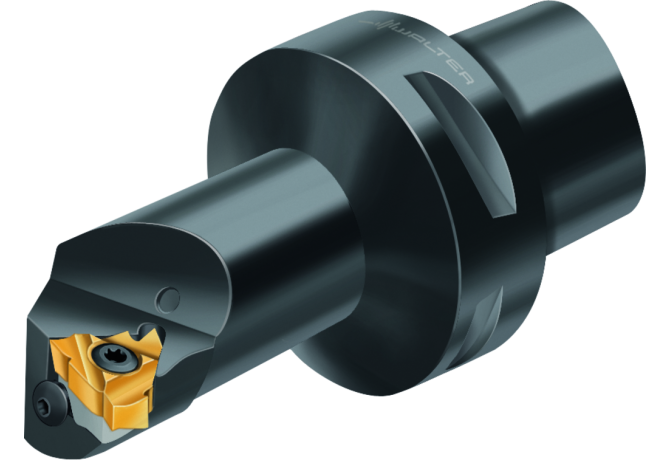

Главная Каталог продукции Toolunited 14 309-10 - System tool for internal threading C5-NTS-SIR27105-22

C5-NTS-SIR27105-22

C5-NTS-SIR27105-22 C5-NTS-SIR27105-22 C5-NTS-SIR27105-22

C5-NTS-SIR27105-22

Walter
Артикул: 5011644
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHD Drop head design
0 - Normal
DIN
CCS05000195
DIN CSW1
W-NTSI22**3R*****
DMIN Minimum bore diameter
50 mm
FamilyProducts
Boring bar – Internal thread C...-NTS-SI
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5011644
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0500$$$$
ISO CSW1
WR$$NTSI22**3R*****
ISYC Subclass
309-10 - System tool for internal threading
KAPR Tool cutting edge angle
90 Degree
LF Functional length
105 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
135 mm
LTA Length tool assembly
105 mm
MIID Master insert identification
NTS-I-22
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C5-NTS-SIR27105-22
OAL Overall length
135 mm
STDNO Standard
ISO26623-1
THSC Tool holder shape code
G - straight shank design
WF Functional width
27 mm
Working process
DGI - Thread turning, internal
WT Weight of item
1.209 kg
