Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning UT40-25E-SVQCR-11

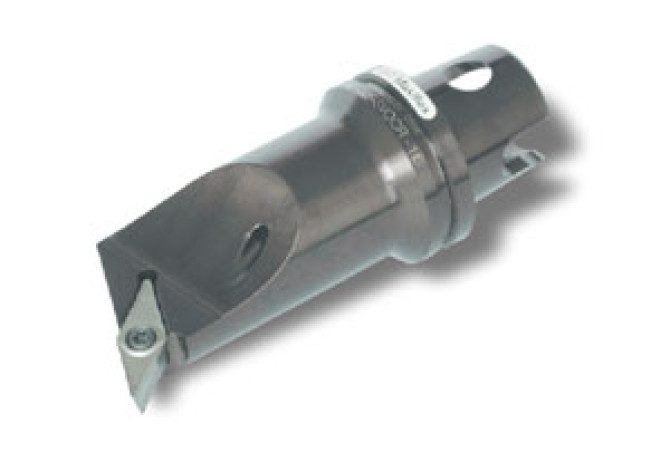

UT40-25E-SVQCR-11

UT40-25E-SVQCR-11

UT40-25E-SVQCR-11

UT40-25E-SVQCR-11

UT40-25E-SVQCR-11

Ceratizit

Артикул: UT40-25E-SVQCR-11

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.18 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCC Design configuration style code

A - Solid steel, with internal coolant supply

DCP Data chip provision

0 - Without data chip

DHD Drop head design

2 - Normal and overhead

DIN

UTS04000195

DIN CSW1

VC1103 3N

DMIN Minimum bore diameter

31 mm

EPSR Insert included angle

35 Degree

FamilyProducts

Maxiflex UTS boring bar

HAND Cutting direction

R - Right

HF Functional height

12.5 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISYC Subclass

309-09 - System tool for internal turning

KAPR Tool cutting edge angle

107.5 Degree

L Cutting edge length

11.1 mm

LF Functional length

70 mm

LH Head length

55 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

UTS Widaflex connection WIDIA

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

UTS04000195

LPR Protruding length

70 mm

LTA Length tool assembly

70 mm

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

UT40-25E-SVQCR-11

THSC Tool holder shape code

A - offset shank design

WF Functional width

17 mm

Working process

DDI - Internal turning
