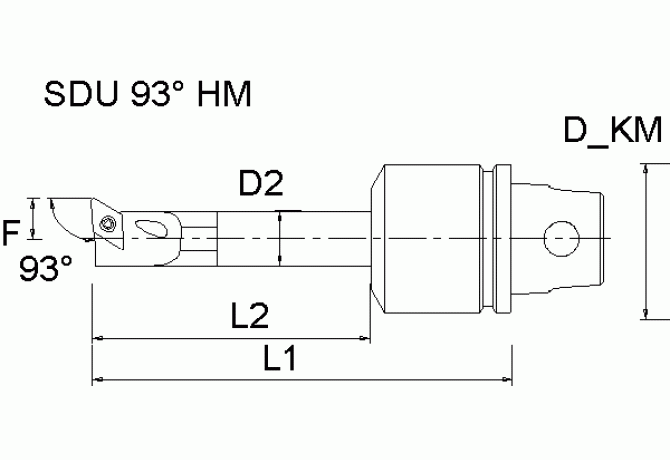

KM32E12GSDUPL07KWH

KM32E12GSDUPL07KWH KM32E12GSDUPL07KWH

KM32E12GSDUPL07KWH

Kennametal
Артикул: KM32E12GSDUPL07KWH
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
COMPC Company code
KH - Kennametal
DCC Design configuration style code
H - Heavy metal, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
KH-KMCI SDUEKM32
DIN CSW1
KH-WP SC DPMT0702
DMIN Minimum bore diameter
16 mm
EPSR Insert included angle
55 Degree
FamilyProducts
KM BORING BAR SDUE
HAND Cutting direction
L - Left
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
7.75 mm
LAMS Inclination angle
5 Degree
LH Head length
60 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
KMT KM connection KENNAMETAL / UTS connection WIDIA
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KH-KMCI SDUEKM32
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
KM32E12GSDUPL07KWH
OAL Overall length
90 mm
WF Functional width
9 mm
Working process
No working processes available
