Главная Каталог продукции СЗЦПК инструмент 14 309-09 - System tool for internal turning KM2520PCLNL1225

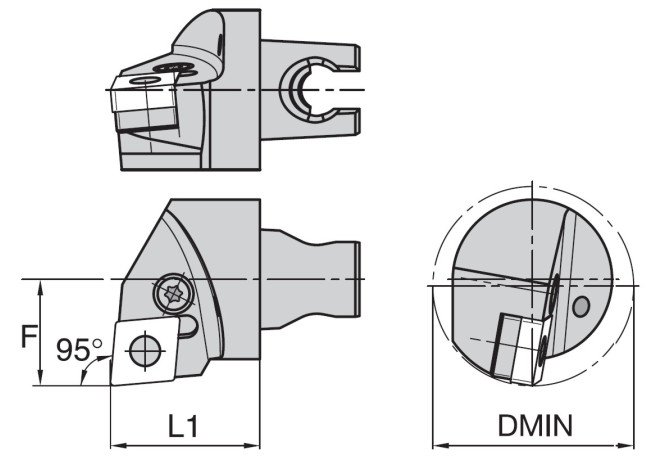

KM2520PCLNL1225

KM2520PCLNL1225 KM2520PCLNL1225

KM2520PCLNL1225

Kennametal
Артикул: 3482969
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
COMPC Company code
KH - Kennametal
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DIN
KH-KM2520
DIN CSW1
CN1204 2N
DMIN Minimum bore diameter
32 mm
FamilyProducts
PCLN 95°, KM2520 Cutting Unit, P-Clamping
HAND Cutting direction
L - Left
ID Technical product number
3482969
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
KMT KM connection KENNAMETAL / UTS connection WIDIA
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0250
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KH-KM2520
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
KM2520PCLNL1225
OAL Overall length
25 mm
WF Functional width
17 mm
Working process
DDI - Internal turning
