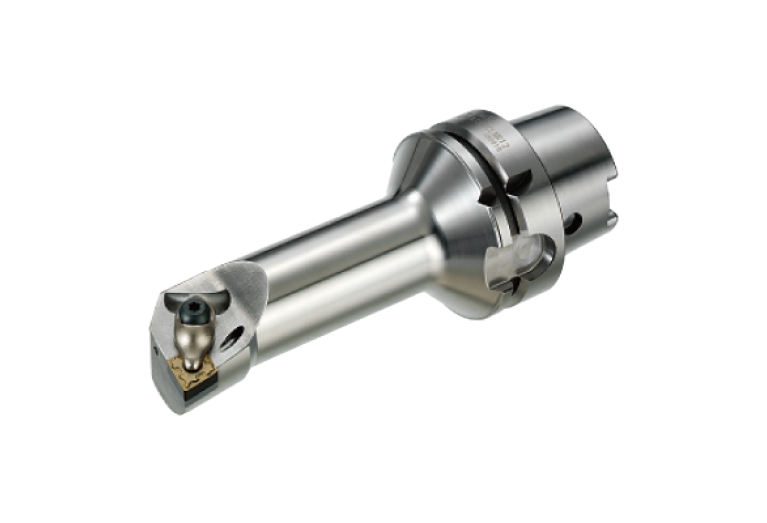

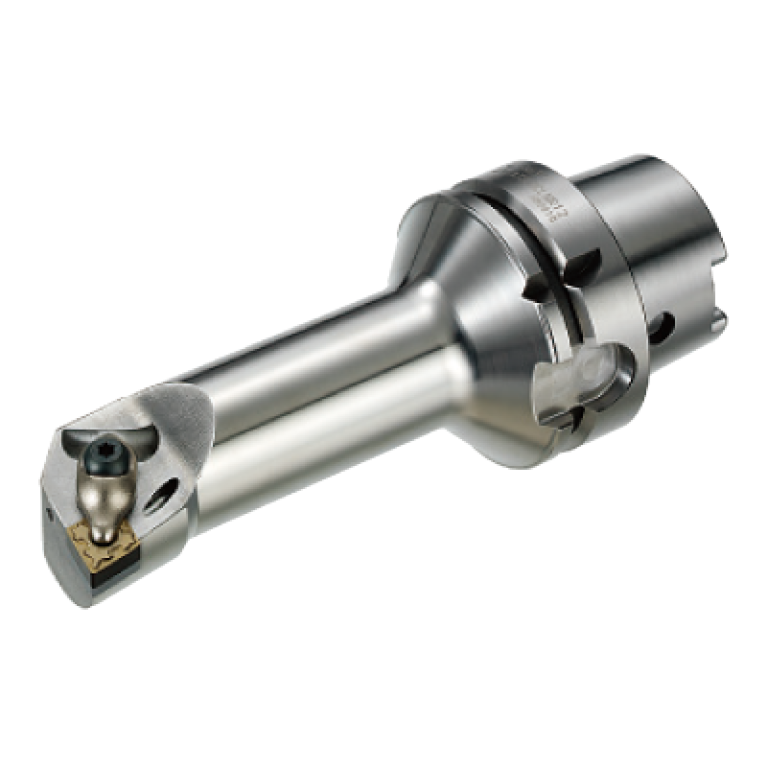

H63TH-A25KDCLNR12

H63TH-A25KDCLNR12 H63TH-A25KDCLNR12 H63TH-A25KDCLNR12 H63TH-A25KDCLNR12

H63TH-A25KDCLNR12

Mitsubishi Materials
Артикул: 436568
В наличии
В корзину
Описание
Характеристики

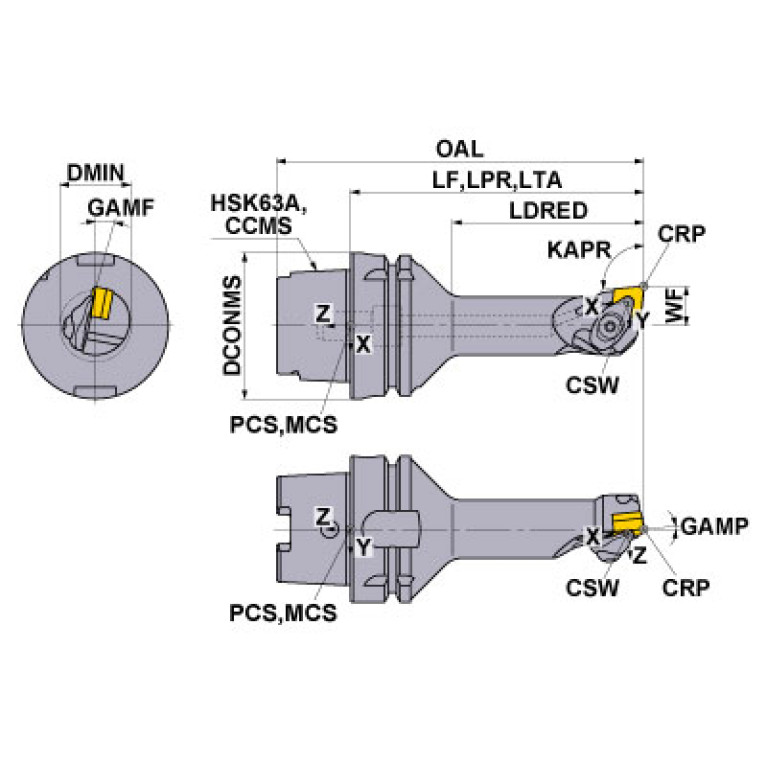

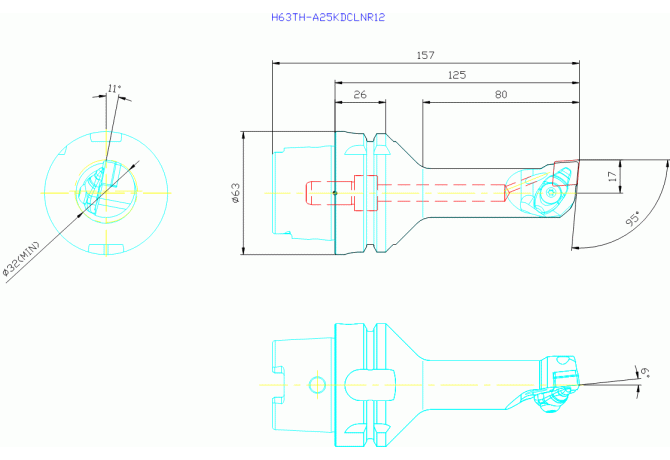

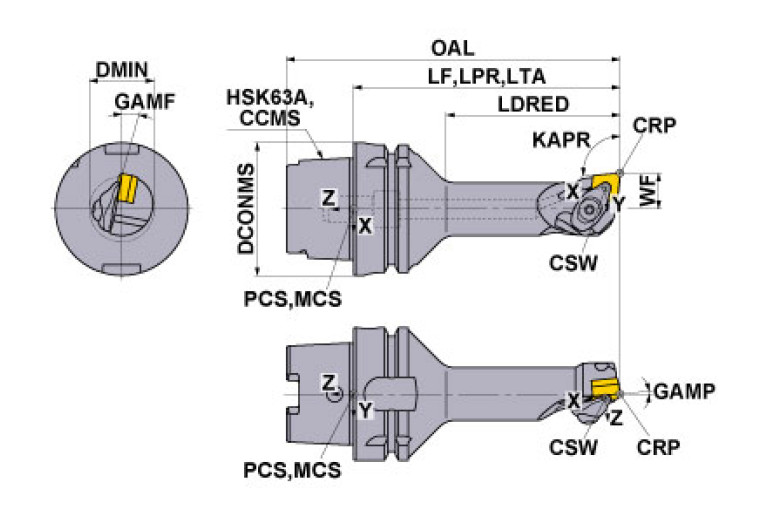

A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
D1A Corner radius Pos. A
0.8 mm
Delivery state valid from
4/1/2022
DIN
HSK06300785
DIN CSW1
MI-CN1204 2N
DMIN Minimum bore diameter
32 mm
FamilyProducts
hsk-t tools
GAMF Rake angle radial
11 Degree
HAND Cutting direction
R - Right
ID Technical product number
436568
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
125 mm
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300785
LTA Length tool assembly
125 mm
MIID Master insert identification
CN1204 2R
Name Identifying order number
H63TH-A25KDCLNR12
OAL Overall length
125 mm
WF Functional width
17 mm
Working process
No working processes available
WT Weight of item
1.1 kg
