Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning DPTF132R

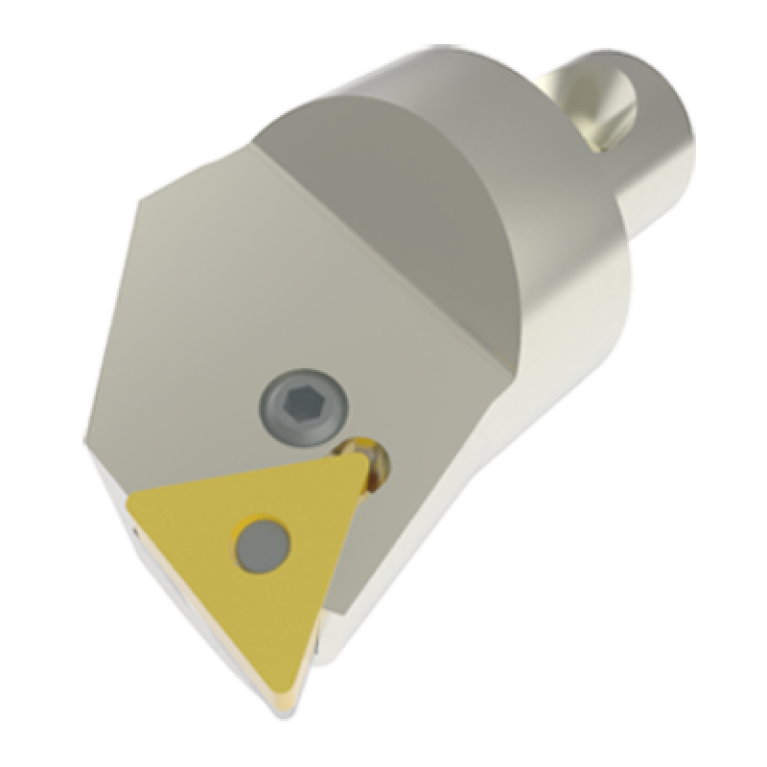

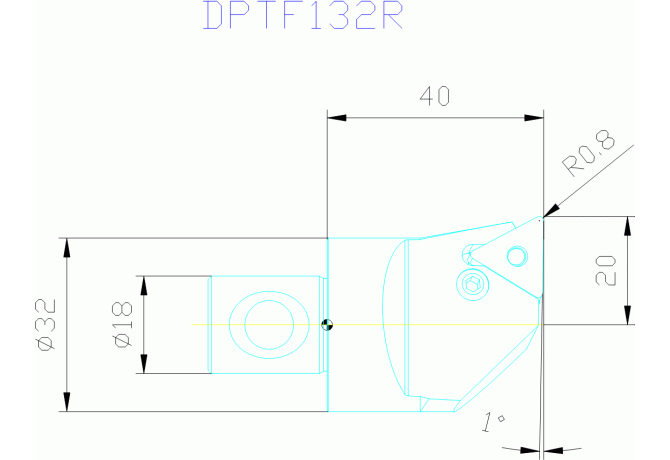

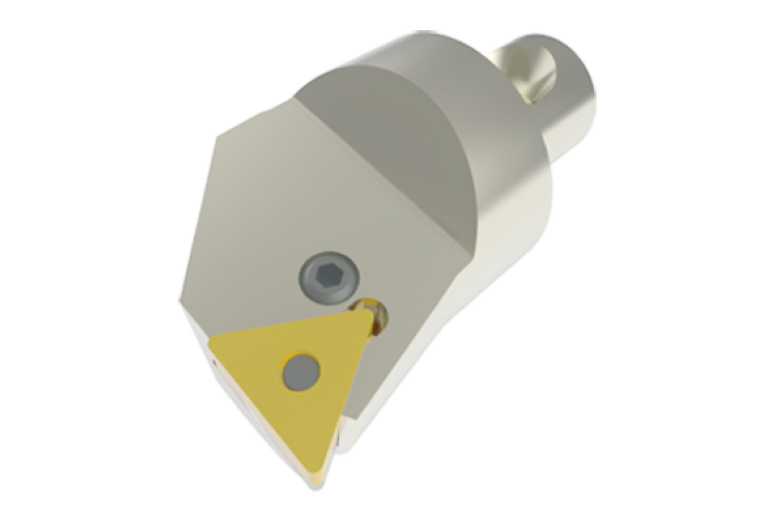

DPTF132R

DPTF132R DPTF132R DPTF132R DPTF132R

DPTF132R

Mitsubishi Materials
Артикул: DPTF132R
В наличии
В корзину
Описание
Характеристики

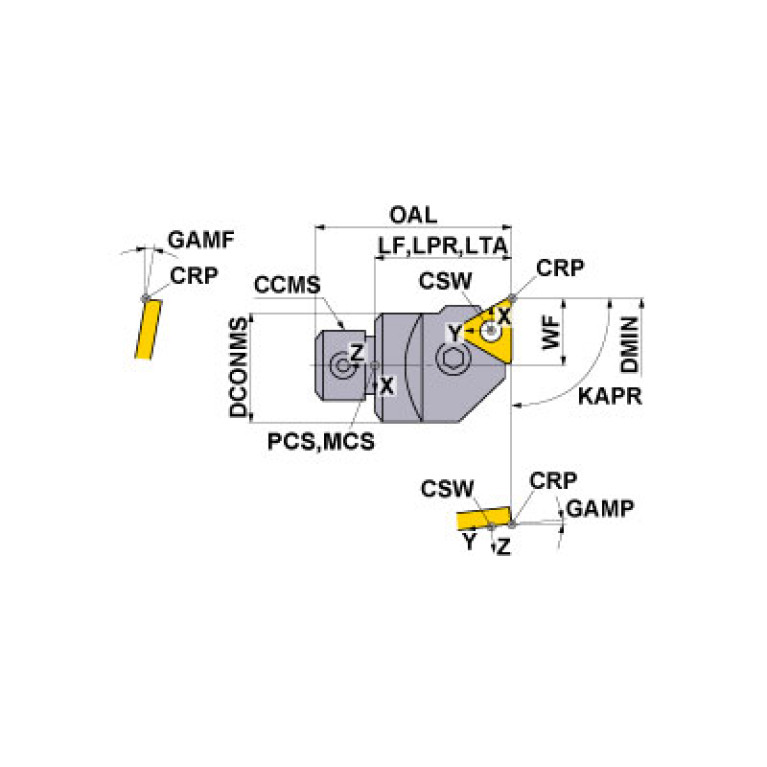

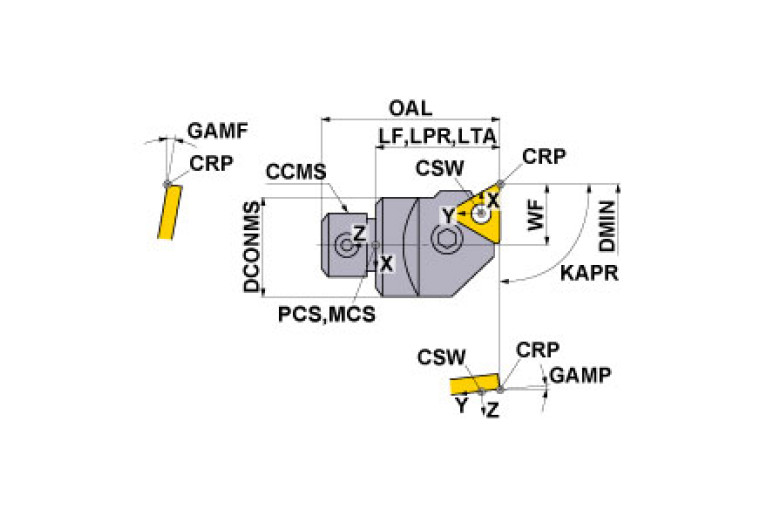

BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
4.76 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DHD Drop head design
0 - Normal
DIN
MI-DPT2132R
DIN CSW1
TN1604 2N
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
60 Degree
FamilyProducts
D Type Boring Head
GAMO Rake angle orthogonal
12 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
16 mm
LAMS Inclination angle
6 Degree
LH Head length
40 mm
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MI-DPT2132R
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
DPTF132R
OAL Overall length
40 mm
THSC Tool holder shape code
A - offset shank design
WF Functional width
20 mm
Working process
DDA - External turning,DFA - External form turning
