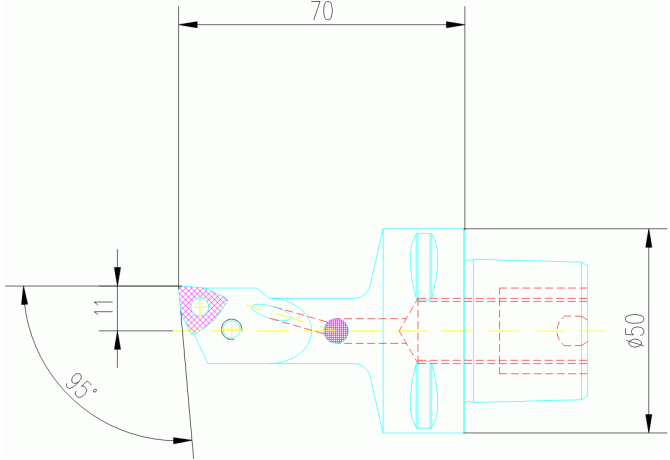

C5-SWLCL-11070-06

C5-SWLCL-11070-06 C5-SWLCL-11070-06

C5-SWLCL-11070-06

Walter
Артикул: 5012500
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
3 - With Coolant entry, axial concentric and radial
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000195
DMIN Minimum bore diameter
20 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Boring bar – Screw clamping C...-SWLC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5012500
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
CCS01C0500$$$$
ISO CSW1
ISO$WC06T3003******
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-10 Degree
LF Functional length
70 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
70 mm
LTA Length tool assembly
70 mm
MIID Master insert identification
WCMT 3 (2.5) 2
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C5-SWLCL-11070-06
OAL Overall length
100 mm
STDNO Standard
ISO26623-1
WF Functional width
11 mm
Working process
No working processes available
WT Weight of item
0.54 kg
