Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning C5-PTFNL-27140-22W

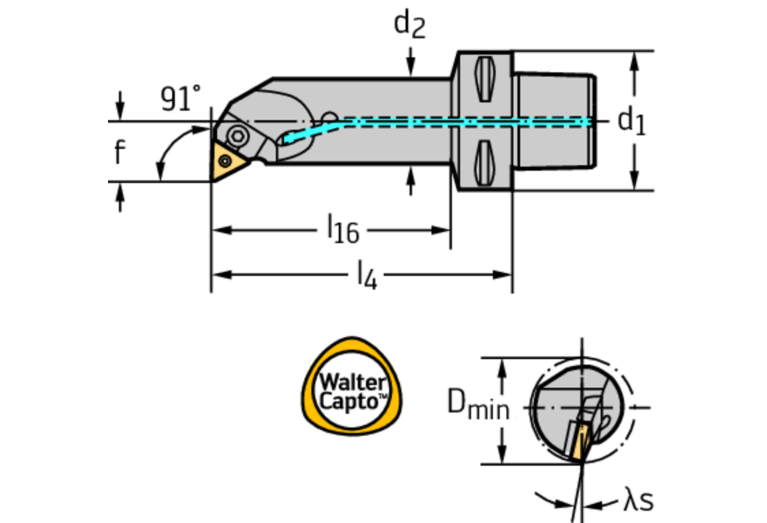

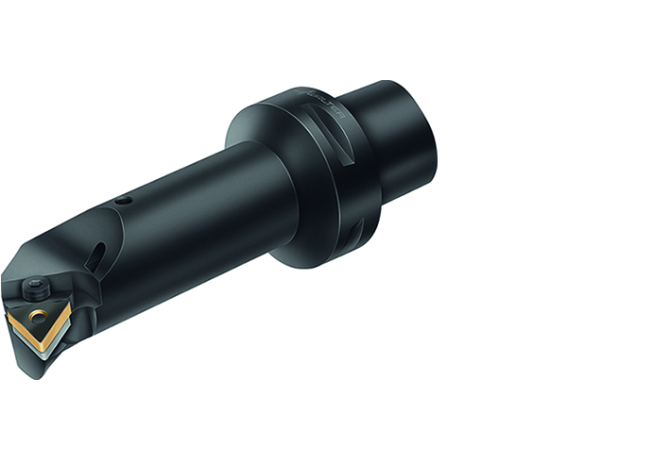

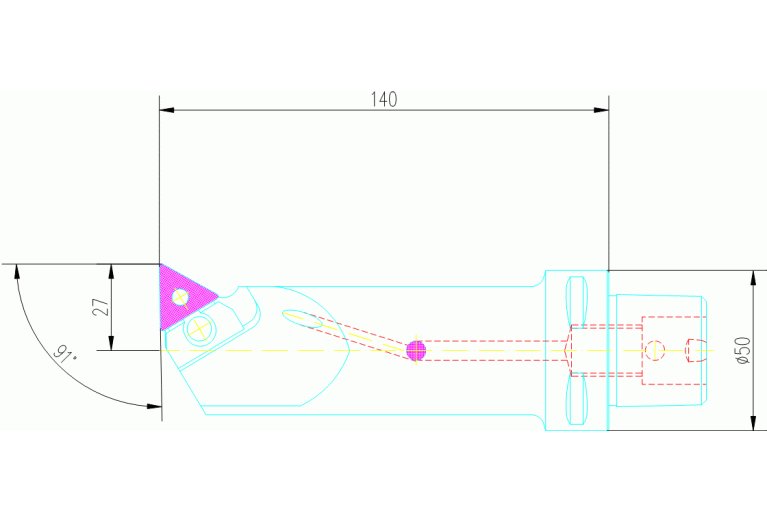

C5-PTFNL-27140-22W

C5-PTFNL-27140-22W C5-PTFNL-27140-22W C5-PTFNL-27140-22W C5-PTFNL-27140-22W

C5-PTFNL-27140-22W

Walter
Артикул: 5011776
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000195
DMIN Minimum bore diameter
50 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Boring bar – Lever clamping C...-PTFN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5011776
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
CCS01C0500$$$$
ISO CSW1
ISO$TN2204002******
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
91 Degree
LAMS Inclination angle
-11 Degree
LF Functional length
140 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
140 mm
LTA Length tool assembly
140 mm
MIID Master insert identification
TNMG 432
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C5-PTFNL-27140-22W
OAL Overall length
170 mm
STDNO Standard
ISO26623-1
WF Functional width
27 mm
Working process
No working processes available
WT Weight of item
1.483 kg
