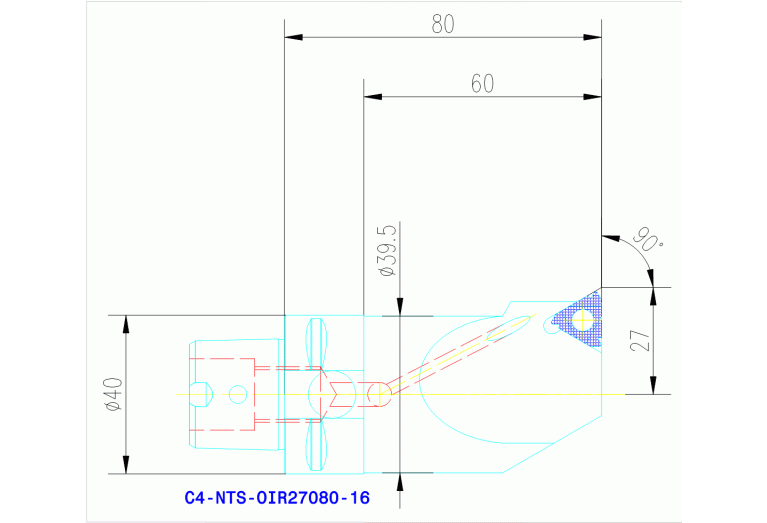

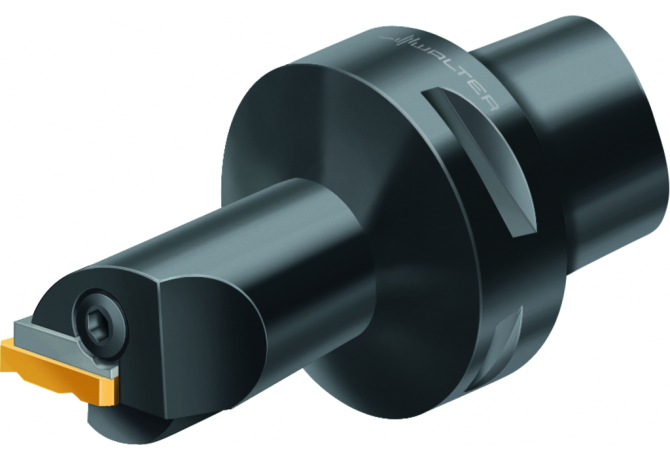

C4-NTS-OIR27080-16

C4-NTS-OIR27080-16 C4-NTS-OIR27080-16 C4-NTS-OIR27080-16 C4-NTS-OIR27080-16

C4-NTS-OIR27080-16

Walter
Артикул: 5011652
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHD Drop head design
1 - overhead
DIN
CCS04000195
DIN CSW1
W-NTSI16**3R*****
DMIN Minimum bore diameter
50 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Boring bar – Internal thread C...-NTS-OI
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5011652
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0400$$$$
ISO CSW1
WR$$NTSI16**3R*****
ISYC Subclass
309-09 - System tool for internal turning
LF Functional length
80 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR Protruding length
104 mm
LTA Length tool assembly
80 mm
MIID Master insert identification
NTS-I-16
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C4-NTS-OIR27080-16
OAL Overall length
104 mm
STDNO Standard
ISO26623-1
WF Functional width
27 mm
Working process
DGI - Thread turning, internal
WT Weight of item
0.75 kg
