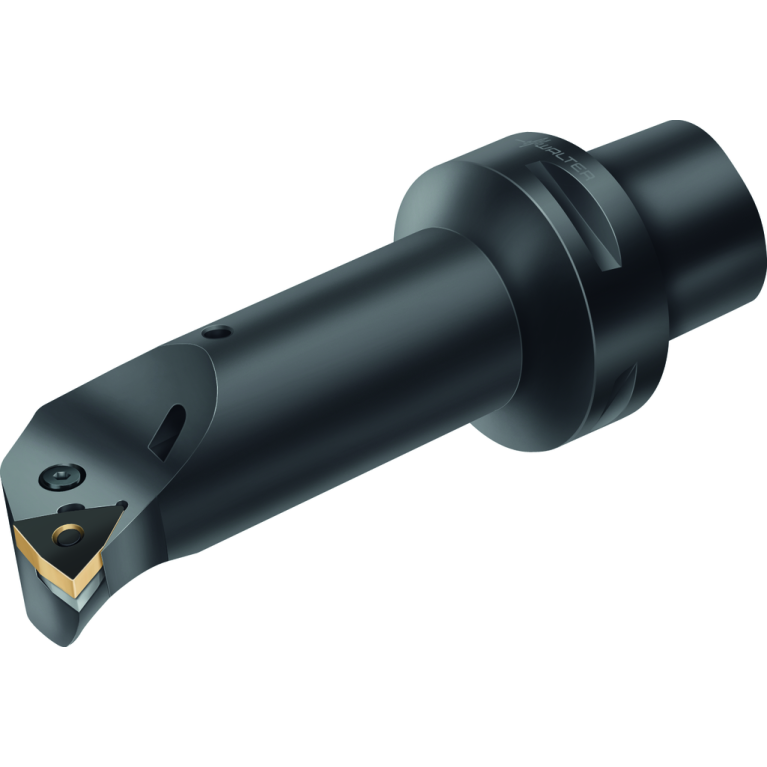

Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning C3-PWLNR-17090-08

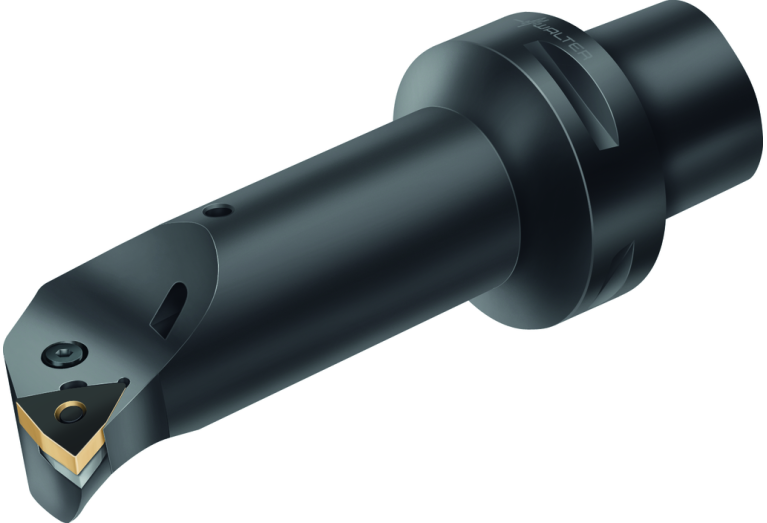

C3-PWLNR-17090-08

C3-PWLNR-17090-08 C3-PWLNR-17090-08 C3-PWLNR-17090-08

C3-PWLNR-17090-08

Walter
Артикул: 5017133
В наличии
В корзину

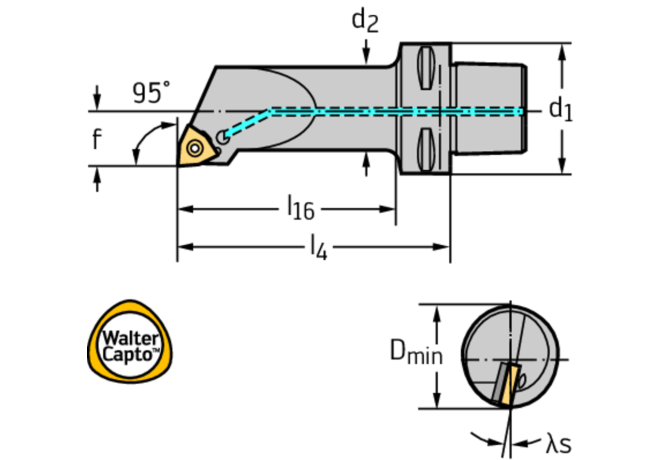

Описание
Характеристики
BDRED Body diameter reduced
25 mm
BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
6 - With coolant supply (discharge), peripheral/decentralized adjustable
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS03200195
DIN CSW1
WN0804992N
DMIN Minimum bore diameter
32 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Boring bar – Lever clamping C...-PWLN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5017133
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0320$$$$
ISO CSW1
ISO$WN0804002******
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
8.7 mm
LAMS Inclination angle
-10 Degree
LF Functional length
90 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
109 mm
LTA Length tool assembly
90 mm
MIID Master insert identification
WNMG 08 04 08
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C3-PWLNR-17090-08
OAL Overall length
109 mm
STDNO Standard
ISO26623-1
THSC Tool holder shape code
G - straight shank design
WF Functional width
17 mm
Working process
DDI - Internal turning,DFI - Internal form turning
WT Weight of item
0.38 kg
