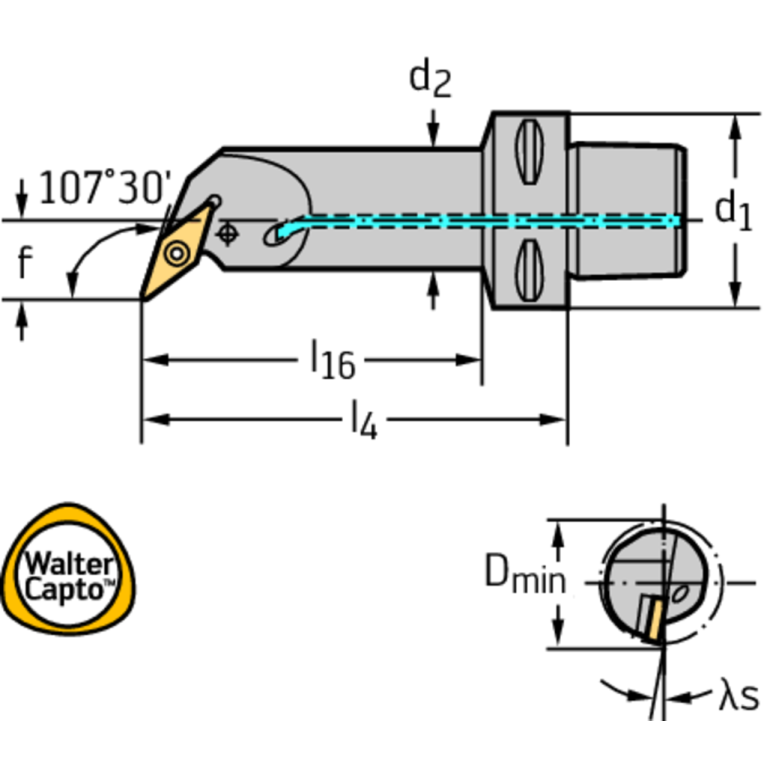

Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning C3-PVQBL-13070-11

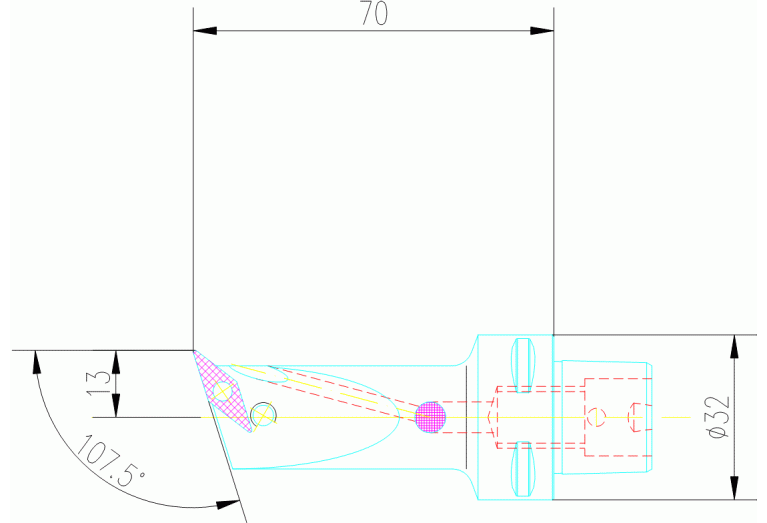

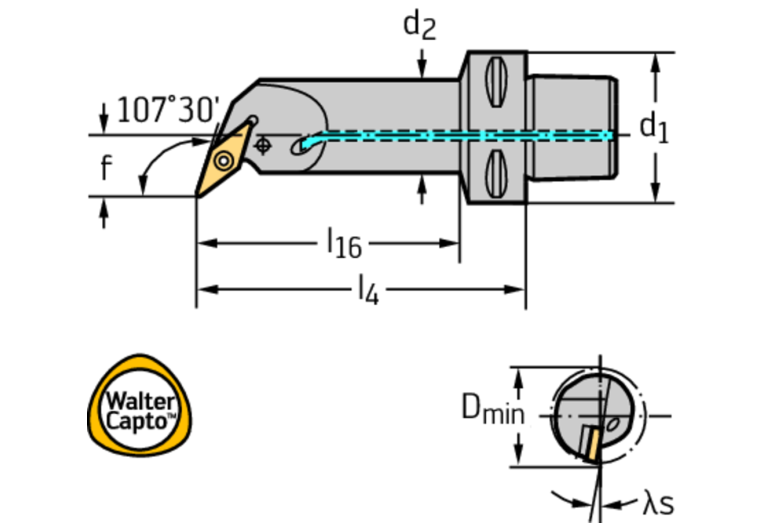

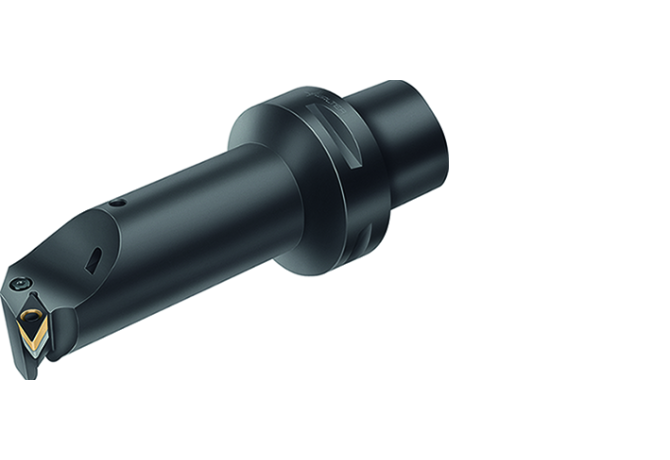

C3-PVQBL-13070-11

C3-PVQBL-13070-11 C3-PVQBL-13070-11 C3-PVQBL-13070-11 C3-PVQBL-13070-11

C3-PVQBL-13070-11

Walter
Артикул: 5017170
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
3 - With Coolant entry, axial concentric and radial
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS03200195
DMIN Minimum bore diameter
25 mm
EPSR Insert included angle
35 Degree
FamilyProducts
Boring bar – Lever clamping C...-PVQB
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5017170
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
CCS01C0320$$$$
ISO CSW1
ISO$VB1103002******
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
17 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
70 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
70 mm
LTA Length tool assembly
70 mm
MIID Master insert identification
VBMT 221
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C3-PVQBL-13070-11
OAL Overall length
89 mm
STDNO Standard
ISO26623-1
WF Functional width
13 mm
Working process
No working processes available
WT Weight of item
0.24 kg
