Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning C3-NTS-SIR22085-16

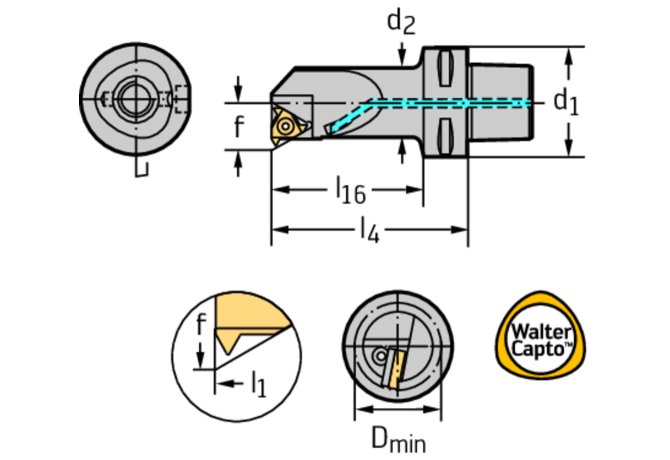

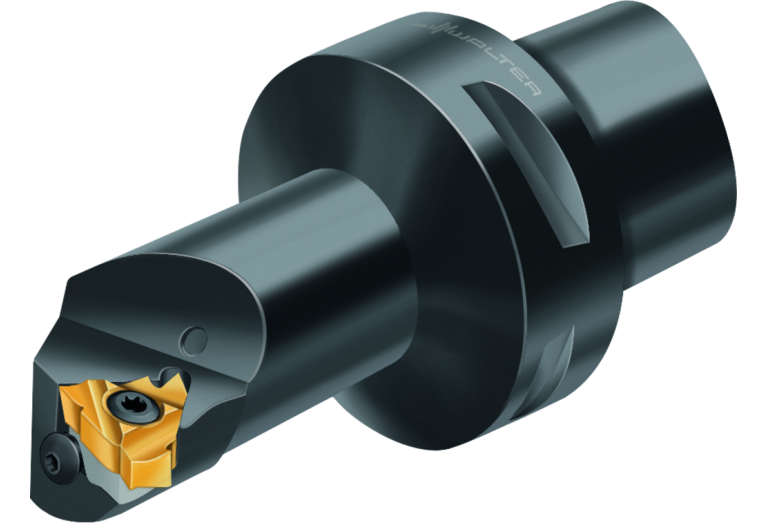

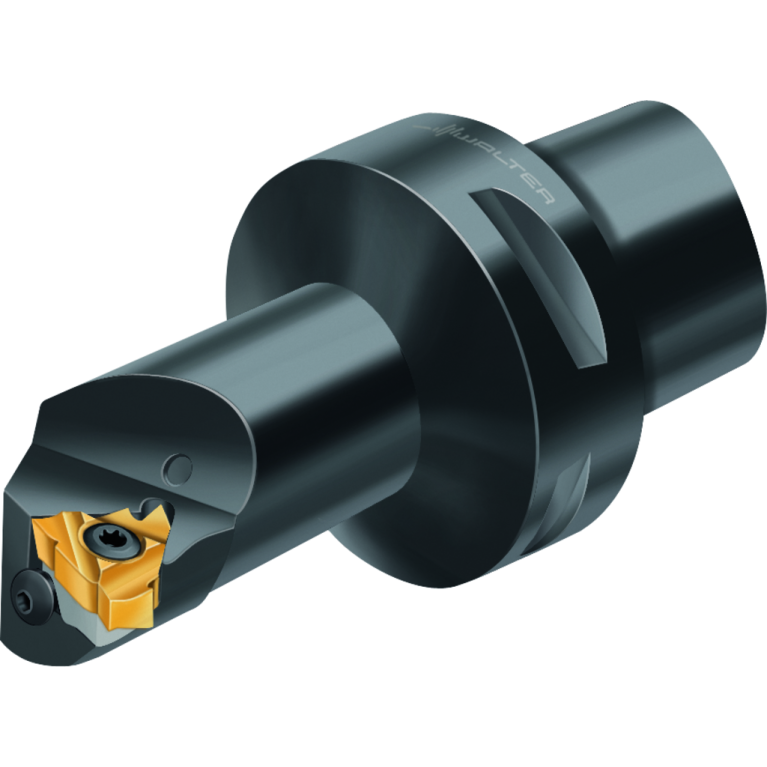

C3-NTS-SIR22085-16

C3-NTS-SIR22085-16 C3-NTS-SIR22085-16 C3-NTS-SIR22085-16

C3-NTS-SIR22085-16

Walter
Артикул: 5017059
В наличии
В корзину
Описание
Характеристики
BDRED Body diameter reduced
32 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHD Drop head design
0 - Normal
DIN
CCS03200195
DIN CSW1
W-NTSI16**3R*****
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Boring bar – Internal thread C...-NTS-SI
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5017059
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0320$$$$
ISO CSW1
WR$$NTSI16**3R*****
ISYC Subclass
309-09 - System tool for internal turning
LF Functional length
85 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
104 mm
LTA Length tool assembly
85 mm
MIID Master insert identification
NTS-I-16
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C3-NTS-SIR22085-16
OAL Overall length
104 mm
STDNO Standard
ISO26623-1
WF Functional width
22 mm
Working process
DGI - Thread turning, internal
WT Weight of item
0.507 kg
