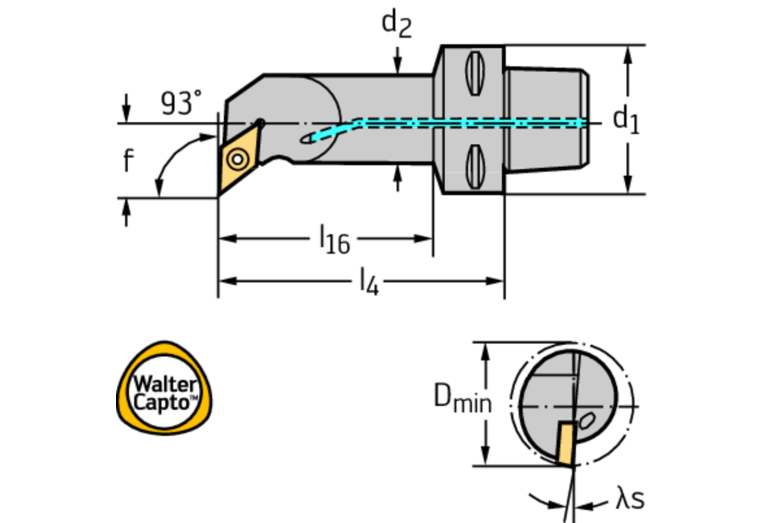

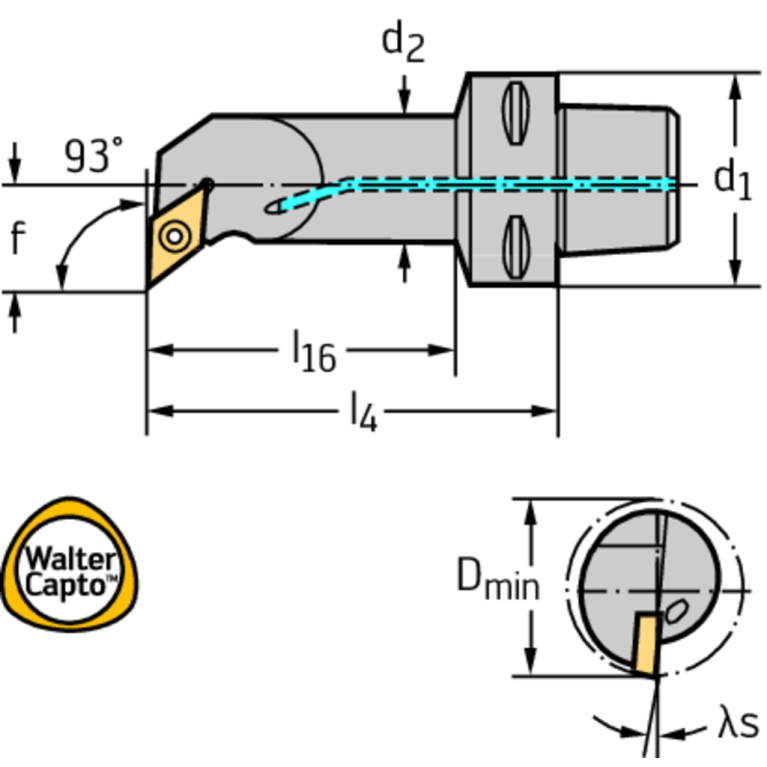

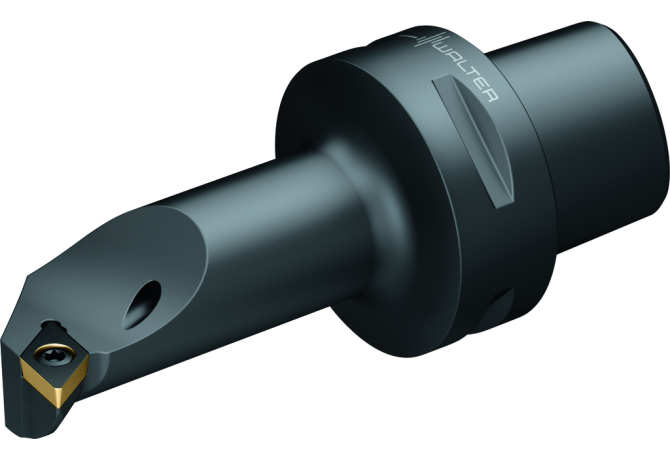

C3-SDUCL-11065-07

C3-SDUCL-11065-07 C3-SDUCL-11065-07 C3-SDUCL-11065-07

C3-SDUCL-11065-07

Walter
Артикул: 5017150
В наличии
В корзину
Описание
Характеристики
BDRED Body diameter reduced
16 mm
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS03200195
DIN CSW1
DC0702993N
DMIN Minimum bore diameter
20 mm
EPSR Insert included angle
55 Degree
FamilyProducts
Boring bar – Screw clamping C...-SDUC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5017150
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0320$$$$
ISO CSW1
ISO$DC0702003******
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
7.7 mm
LAMS Inclination angle
-4.345 Degree
LF Functional length
65 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
84 mm
LTA Length tool assembly
65 mm
MIID Master insert identification
DCMT 07 02 04
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C3-SDUCL-11065-07
OAL Overall length
84 mm
STDNO Standard
ISO26623-1
THSC Tool holder shape code
G - straight shank design
WF Functional width
11 mm
Working process
DDI - Internal turning,DFI - Internal form turning
WT Weight of item
0.207 kg
