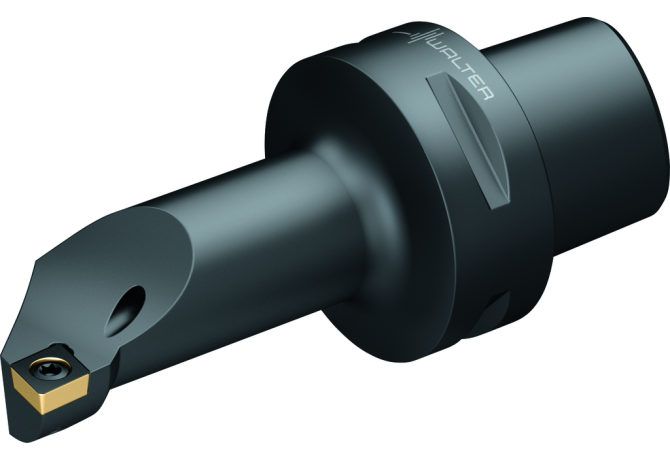

C4-SCLCR-22110-12

C4-SCLCR-22110-12 C4-SCLCR-22110-12 C4-SCLCR-22110-12

C4-SCLCR-22110-12

Walter
Артикул: 5204786
В наличии
В корзину
Описание
Характеристики

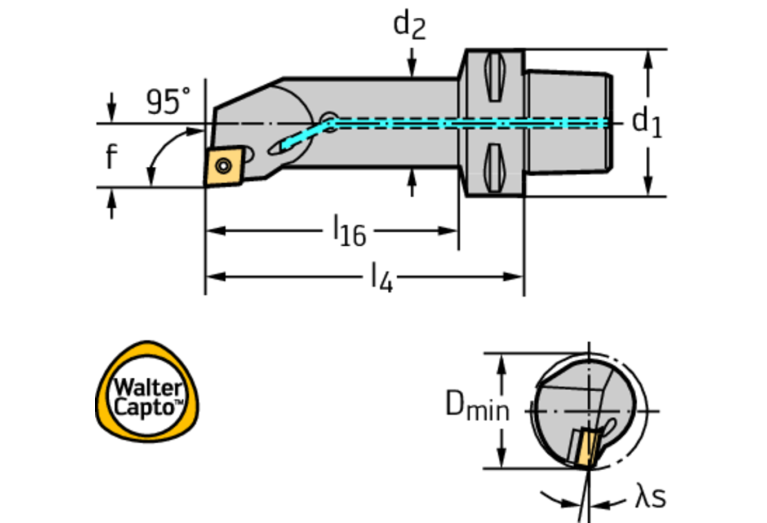

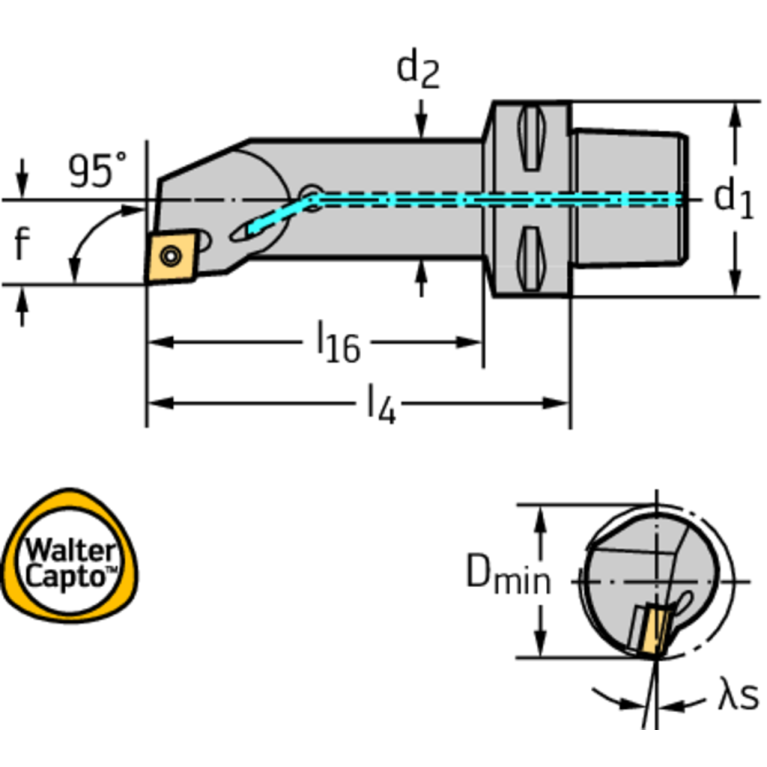

BDRED Body diameter reduced
32 mm
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000195
DIN CSW1
CC1204993N
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Boring bar – Screw clamping C...-SCLC
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5204786
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0400$$$$
ISO CSW1
ISO$CC1204003******
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12.9 mm
LAMS Inclination angle
-9.792 Degree
LF Functional length
110 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR Protruding length
134 mm
LTA Length tool assembly
110 mm
MIID Master insert identification
CCMT 12 04 08
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C4-SCLCR-22110-12
OAL Overall length
134 mm
STDNO Standard
ISO26623-1
WF Functional width
22 mm
Working process
DDI - Internal turning,DFI - Internal form turning
WT Weight of item
0.76 kg
