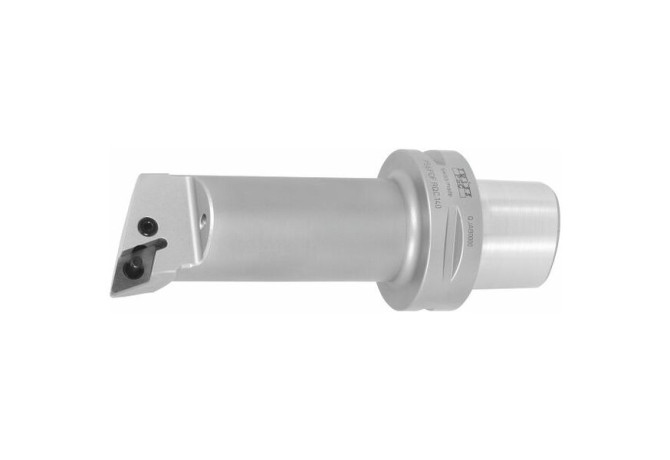

Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning 320405 50/15-110

320405 50/15-110

320405 50/15-110 320405 50/15-110 320405 50/15-110

320405 50/15-110

Hoffmann Group
Артикул: 320405 50/15-110
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
CCS05000195
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
55 Degree
FamilyProducts
Lever-lock boring bar right-hand
GAMF Rake angle radial
-12 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
107.5 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
-6 Degree
LF Functional length
110 mm
LH Head length
88 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
110 mm
LTA Length tool assembly
110 mm
MIID Master insert identification
DN..1506..
Name Identifying order number
320405 50/15-110
WF Functional width
22 mm
Working process
DDA - External turning,DDI - Internal turning
WT Weight of item
0.875 kg
