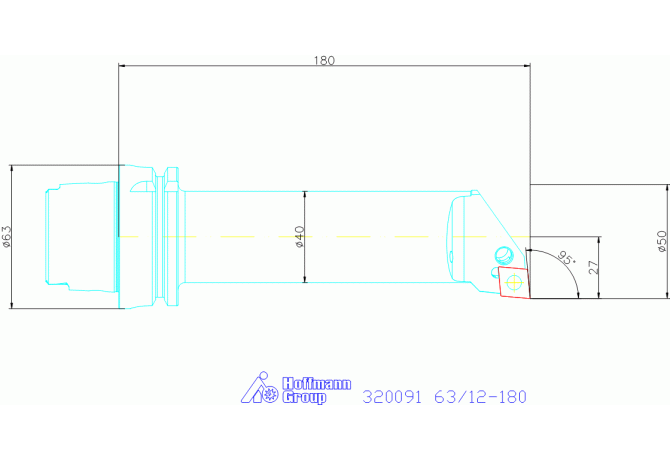

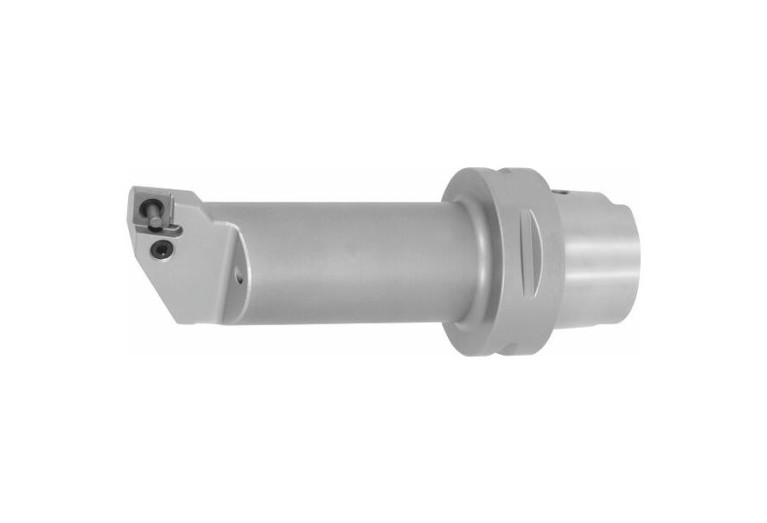

Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning 320091 63/12-180

320091 63/12-180

320091 63/12-180 320091 63/12-180 320091 63/12-180

320091 63/12-180

Hoffmann Group
Артикул: 320091 63/12-180
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
HSK06300795
DMIN Minimum bore diameter
50 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Lever-lock boring bar left-hand
GAMF Rake angle radial
-8 Degree
HAND Cutting direction
L - Left
Interface codes
J6 /
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12.7 mm
LAMS Inclination angle
-5 Degree
LF Functional length
180 mm
LH Head length
154 mm
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300795
LPR Protruding length
180 mm
LTA Length tool assembly
180 mm
MIID Master insert identification
CN..1204..
Name Identifying order number
320091 63/12-180
WF Functional width
27 mm
Working process
DDA - External turning,DDI - Internal turning
WT Weight of item
1.95 kg
