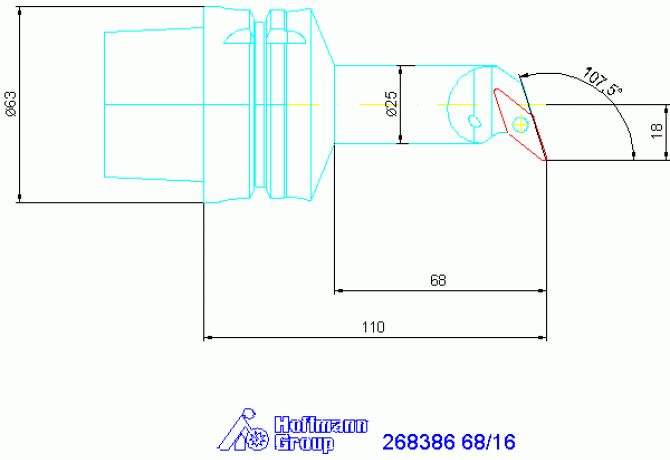

Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning 268386 68/16

268386 68/16

268386 68/16 268386 68/16

268386 68/16

Hoffmann Group
Артикул: 268386 68/16
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
HSK06300785
DIN CSW1
VC1604 3N
EPSR Insert included angle
35 Degree
FamilyProducts
GARANT H63T-SVQCL-18110-16
GAMF Rake angle radial
-6 Degree
HAND Cutting direction
L - Left
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
107.5 Degree
L Cutting edge length
16 mm
LAMS Inclination angle
0 Degree
LH Head length
68 mm
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300785
LPR Protruding length
110 mm
MIID Master insert identification
VC*T1604**
Name Identifying order number
268386 68/16
WF Functional width
18 mm
Working process
No working processes available
WT Weight of item
1.12 kg
