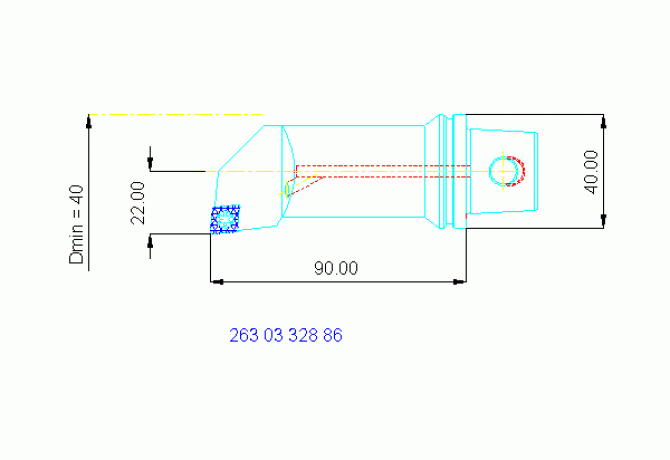

Главная Каталог продукции Toolunited 14 309-09 - System tool for internal turning 12630332886

12630332886

12630332886 12630332886

12630332886

Widia
Артикул: 12630332886
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.97 mm
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
WI - Widia
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
A - Solid steel, with internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state valid from
216.2 €
DHD Drop head design
2 - Normal and overhead
DIN
UTS04000195
DIN CSW1
CC09T3 3N
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
80 Degree
FamilyProducts
Cutting head for internal turning
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
20 mm
ID Technical product number
12630332886
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
9.65 mm
LAMS Inclination angle
0 Degree
LF Functional length
90 mm
LH Head length
75 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
UTS Widaflex connection WIDIA
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
UTS04000195
LTA Length tool assembly
90 mm
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
12630332886
OAL Overall length
90 mm
STDDES Standard designation
A40G-SCLCR09
THSC Tool holder shape code
A - offset shank design
WF Functional width
22 mm
Working process
DDB - External and internal turning
