Главная Каталог продукции СЗЦПК инструмент 14 309-08 - System tool for external threading KM20LSER1625

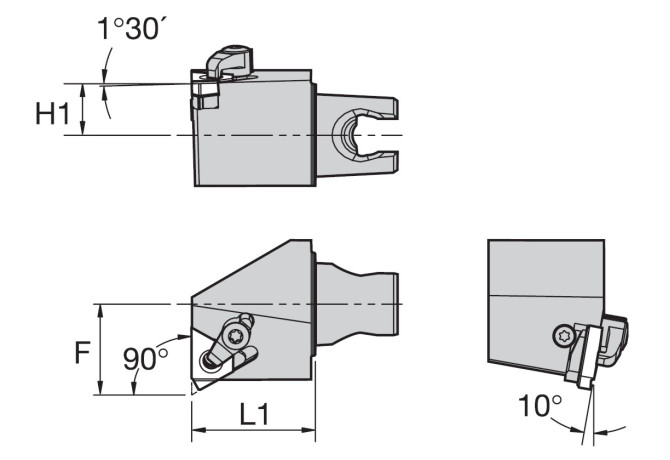

KM20LSER1625

Артикул: 3482966

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

KH - Kennametal

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DIN

KMT02000185

DIN CSW1

KH-LT16EL

FamilyProducts

LSE - End Mount, KM20 Cutting Unit

HAND Cutting direction

R - Right

HF Functional height

9.5 mm

ID Technical product number

3482966

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-08 - System tool for external threading

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0200

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KMT02000185

Name Identifying order number

KM20LSER1625

OAL Overall length

25 mm

WF Functional width

17 mm

Working process

DDA - External turning
