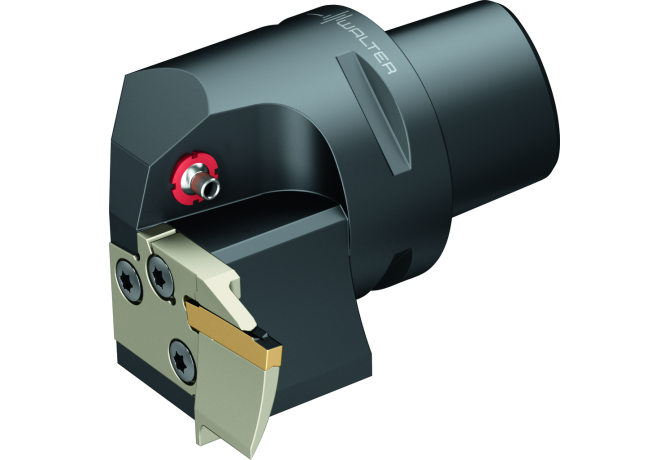

NCHE32-C600R-GX24-3-3

NCHE32-C600R-GX24-3-3 NCHE32-C600R-GX24-3-3 NCHE32-C600R-GX24-3-3

NCHE32-C600R-GX24-3-3

Walter
Артикул: 5012342
В наличии
В корзину
Описание
Характеристики
AXGSUP Axial groove support direction
2
CDX Cutting depth maximum
15 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CW Cutting width
4 mm
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DAXN Axial groove od min
108 mm
DAXX Axial groove od max
150 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS06300195
DIN CSW1
W-GX243000***EX**
FamilyProducts
Groove turning – 90° axial grooving C...-NCHE
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
5012342
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0630$$$$
ISO CSW1
WR$$GX243000***EX**
ISYC Subclass
309-11 - System tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
101.9 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
101.9 mm
MIID Master insert identification
GX24-3
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
NCHE32-C600R-GX24-3-3
OAL Overall length
101.9 mm
STDNO Standard
ISO26623-1
WF Functional width
49 mm
Working process
DDI - Internal turning,DSS - Face grooving
WT Weight of item
0.1 kg
