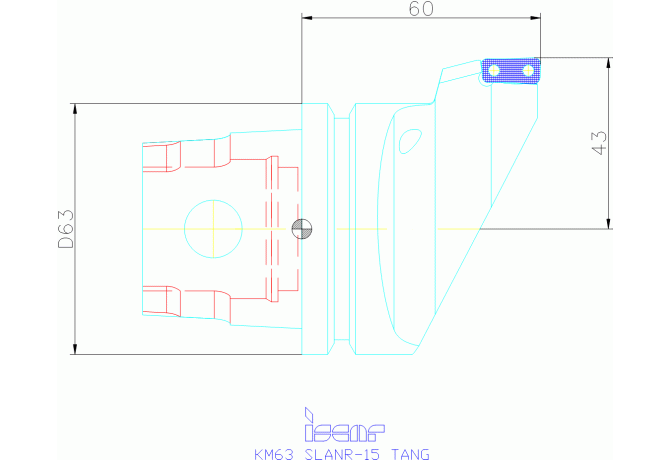

IM63 SLANR-15 TANG

Артикул: 3602299

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/1/2012

DIN

KMT06300195

FamilyProducts

IM63 SLANR-15 TANG

HAND Cutting direction

R - Right

ID Technical product number

3602299

Interface codes

J6 /

ISYC Subclass

309-11 - System tool for OD grooving and parting

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KMT06300195

Name Identifying order number

IM63 SLANR-15 TANG

OAL Overall length

60 mm

WF Functional width

43 mm

Working process

No working processes available
