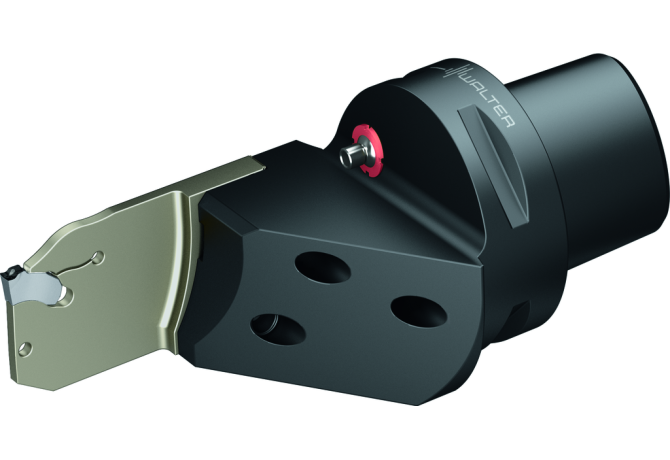

Главная Каталог продукции СЗЦПК инструмент 14 309-11 - System tool for OD grooving and parting G2612-C4L-3T35SX

G2612-C4L-3T35SX

G2612-C4L-3T35SX G2612-C4L-3T35SX G2612-C4L-3T35SX

G2612-C4L-3T35SX

Walter
Артикул: 6964986
В наличии
В корзину
Описание
Характеристики

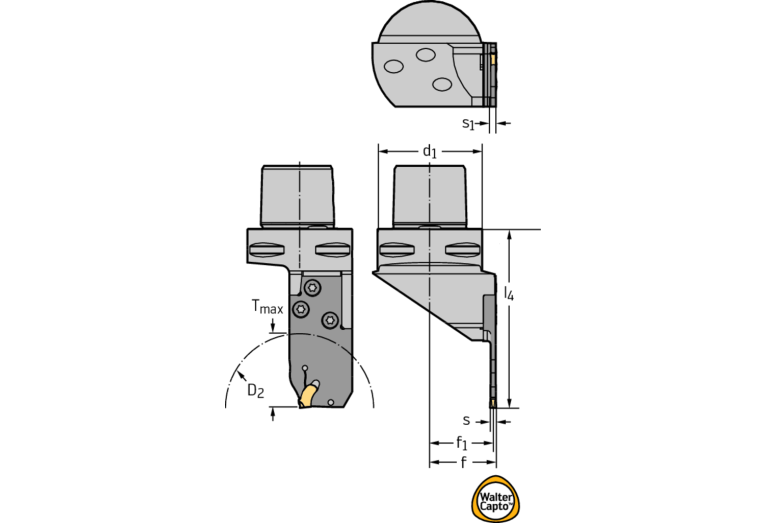

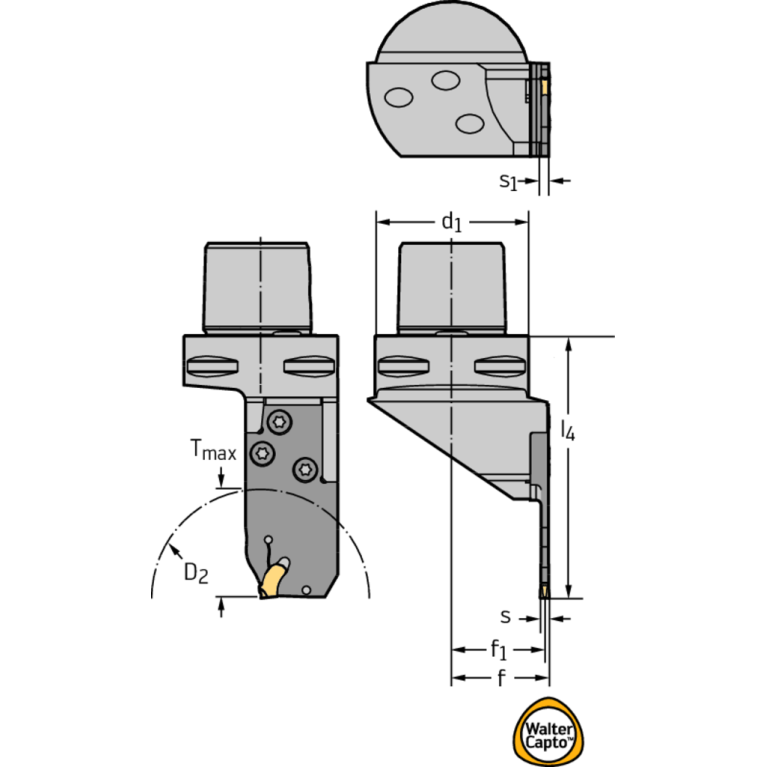

CDX Cutting depth maximum
35 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CW Cutting width
3 mm
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DAXX Axial groove od max
70 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000195
DIN CSW1
W-SX003000*******
FamilyProducts
Groove turning – Radial grooving G2612-C...
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
6964986
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0400$$$$
ISO CSW1
WR$$SX003000*******
ISYC Subclass
309-11 - System tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
85.5 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR Protruding length
109.5 mm
LTA Length tool assembly
85.5 mm
MIID Master insert identification
SX-3
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
G2612-C4L-3T35SX
OAL Overall length
109.5 mm
STDNO Standard
ISO26623-1
Working process
DEA - Outer diameter grooving,ESA - Cutting off
WT Weight of item
0.775 kg
