Главная Каталог продукции СЗЦПК инструмент 14 309-12 - System tool for ID grooving G2622-C6R-8T45SX

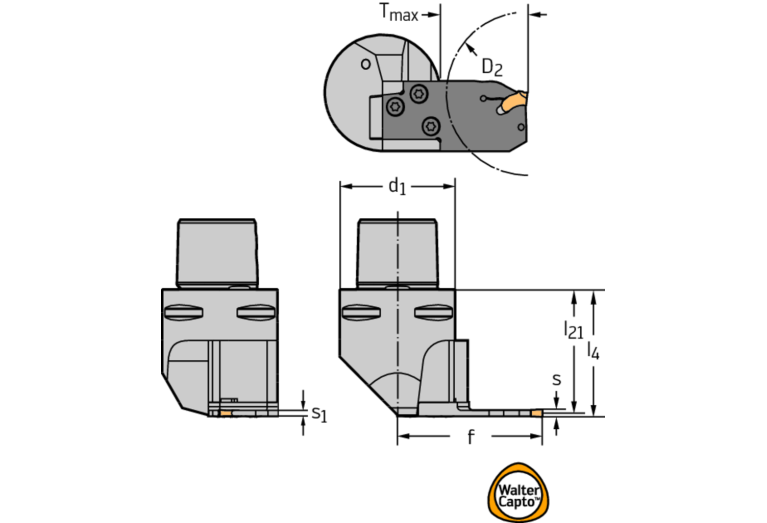

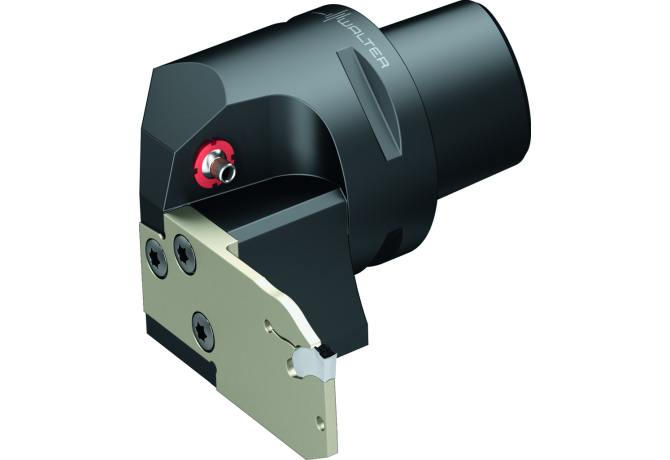

G2622-C6R-8T45SX

G2622-C6R-8T45SX G2622-C6R-8T45SX G2622-C6R-8T45SX

G2622-C6R-8T45SX

Walter
Артикул: 6964878
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
45 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CW Cutting width
8 mm
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS06300195
DIN CSW1
W-SX008000*******
FamilyProducts
Groove turning – 90° radial grooving G2622-C...
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
6964878
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0630$$$$
ISO CSW1
WR$$SX008000*******
ISYC Subclass
309-12 - System tool for ID grooving
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
98.4 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
102.4 mm
LTA Length tool assembly
98.4 mm
MIID Master insert identification
SX-8
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
G2622-C6R-8T45SX
OAL Overall length
102.4 mm
STDNO Standard
ISO26623-1
WF Functional width
80 mm
Working process
DEA - Outer diameter grooving,ESA - Cutting off
WT Weight of item
1.412 kg
