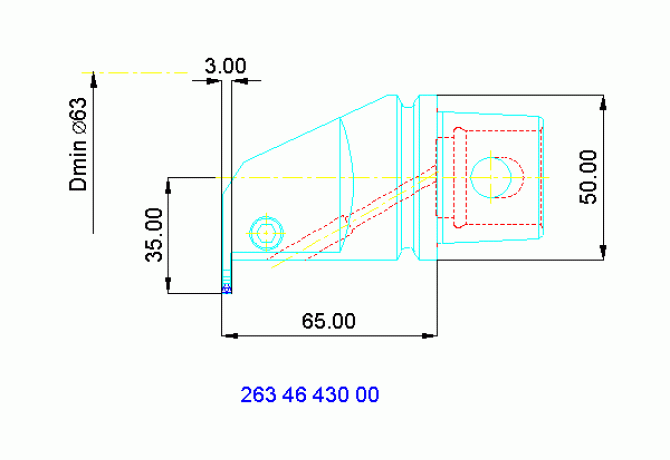

Главная Каталог продукции Toolunited 14 309-12 - System tool for ID grooving 12634643000

12634643000

12634643000 12634643000

12634643000

Widia
Артикул: 12634643000
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
9 mm
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
WI - Widia
CW Cutting width
3 mm
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
A - Solid steel, with internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state valid from
216.8 €
DHD Drop head design
2 - Normal and overhead
DIN
UTS05000195
DIN CSW1
WI-123569830
DMIN Minimum bore diameter
63 mm
FamilyProducts
TwinGroove head for grooving and straight turning
HAND Cutting direction
R - Right
HF Functional height
25 mm
ID Technical product number
12634643000
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-12 - System tool for ID grooving
KAPR Tool cutting edge angle
90 Degree
LF Functional length
9 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
UTS Widaflex connection WIDIA
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
UTS05000195
LPR Protruding length
10.5 mm
LTA Length tool assembly
9 mm
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
12634643000
OAL Overall length
65 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
35 mm
Working process
DEI - Grooving
