Главная Каталог продукции Toolunited 14 309-12 - System tool for ID grooving 12634532186

12634532186

12634532186 12634532186

12634532186

Widia
Артикул: 12634532186
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
WI - Widia
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
A - Solid steel, with internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state valid from
216.2 €
DHD Drop head design
2 - Normal and overhead
DIN
UTS04000195
DIN CSW1
WI-123576241

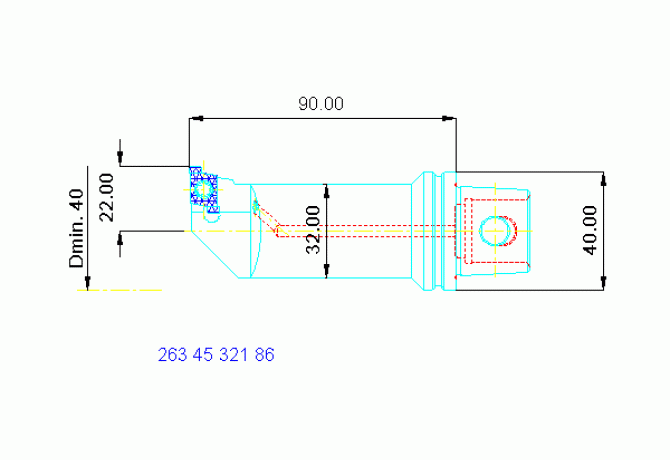

DMIN Minimum bore diameter
40 mm
FamilyProducts
Cutting head for cutting locking-ring grooves
HAND Cutting direction
L - Left
HF Functional height
20 mm
ID Technical product number
12634532186
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-12 - System tool for ID grooving
KAPR Tool cutting edge angle
90 Degree
LH Head length
75 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
UTS Widaflex connection WIDIA
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
UTS04000195
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
12634532186
OAL Overall length
90 mm
THSC Tool holder shape code
A - offset shank design
WF Functional width
22 mm
Working process
DEI - Grooving
