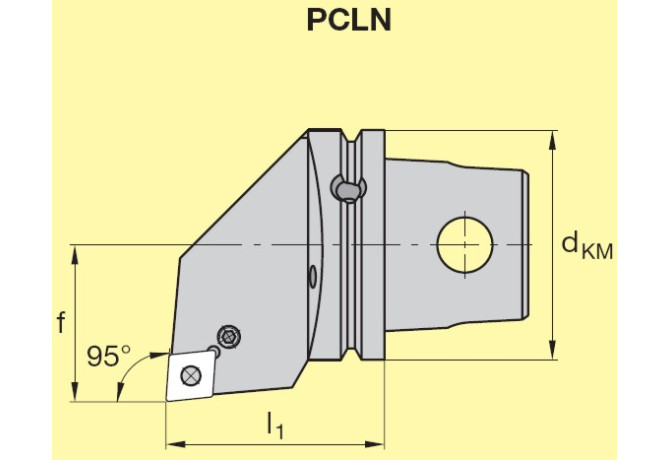

KM63XMZPCLNR12Y

KM63XMZPCLNR12Y KM63XMZPCLNR12Y

KM63XMZPCLNR12Y

Kennametal
Артикул: 2231263
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/1/2009
DIN
KMT06300195
DIN CSW1
CN1204 3N
FamilyProducts
Mazak toolholder KM63XMZ-PCLN
HAND Cutting direction
R - Right
ID Technical product number
2231263
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
12 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
KMT KM connection KENNAMETAL / UTS connection WIDIA
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KMT06300195
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
KM63XMZPCLNR12Y
OAL Overall length
60 mm
WF Functional width
43 mm
Working process
DDA - External turning
